XC9536XV

Features: • 36 macrocells with 800 usable gates• Available in small footprint packages- 44-pin PLCC (34 user I/O pins)- 44-pin VQFP (34 user I/O pins)- 48-pin CSP (36 user I/O pins)• Optimized for high-performance 2.5V systems- Low power operation- Multi-voltage operation• ...

product image

XC9536XV Picture
See larger image
SeekIC No. : 004548088 Detail

XC9536XV: Features: • 36 macrocells with 800 usable gates• Available in small footprint packages- 44-pin PLCC (34 user I/O pins)- 44-pin VQFP (34 user I/O pins)- 48-pin CSP (36 user I/O pins)̶...

XC9536XV Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XC9536XV
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 36 macrocells with 800 usable gates
• Available in small footprint packages- 44-pin PLCC (34 user I/O pins)- 44-pin VQFP (34 user I/O pins)- 48-pin CSP (36 user I/O pins)
• Optimized for high-performance 2.5V systems- Low power operation- Multi-voltage operation
• Advanced system features- In-system programmable- Superior pin-locking and routability with Fast CONNECT™ II switch matrix- Extra wide 54-input Function Blocks- Up to 90 product-terms per macrocell with individual product-term allocation- Local clock inversion with three global and one product-term clocks- Individual output enable per output pin- Input hysteresis on all user and boundary-scan pin inputs- Bus-hold circuitry on all user pin inputs- Full IEEE Standard 1149.1 boundary-scan (JTAG)
• Fast concurrent programming
• Slew rate control on individual outputs
• Enhanced data security features
• Excellent quality and reliability- 20 year data retention- ESD protection exceeding 2,000V
• Pin-compatible with 3.3V-core XC9536XL device in the 44-pin PLCC, 44-pin VQFP, and 48-pin CSP packages


Pinout

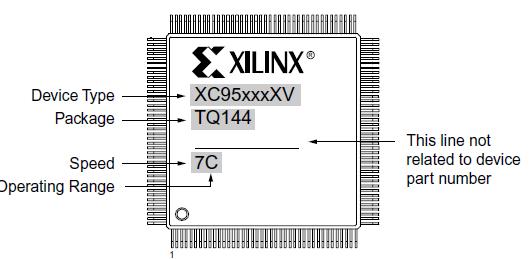

Connection Diagram


Specifications

Symbol
Description
Value
Units
VCC
 Supply voltage relative to GND
0.5 to 2.7
V
VCCIO
 Supply voltage for output drivers
0.5 to 3.6
V
VIN
 Input voltage relative to GND(1)
0.5 to 3.6
V
VTS
 Voltage applied to 3-state output(1)
0.5 to 3.6
V
TSTG
 Storage temperature (ambient)
65 to +150
TJ
 Junction temperature
+150
Notes:
1. Maximum DC undershoot below GND must be limited to either 0.5V or 10 mA, whichever is easier to achieve. During transitions, the device pins may undershoot to 2.0V or overshoot to +3.6V, provided this over- or undershoot lasts less than 10 ns and with the forcing current being limited to 200 mA.
2. Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those listed under Operating Conditions is not implied. Exposure to Absolute Maximum Ratings conditions for extended periods of time may affect device reliability.
3. For solder specifications, see Xilinx Packaging.


Description

The XC9536XV is a 2.5V CPLD targeted for high-performance,low-voltage applications in leading-edge communications  and computing systems. XC9536XV is comprised of two 54V18 Function Blocks, providing 800 usable gates with propagation delays of 5 ns. See Figure 2 for architecture overview.
