Features: • High-performance XC800 Core compatible with standard 8051 processor two clocks per machine cycle architecture (for memory access without wait state) two data pointers• On-chip memory 8 Kbytes of Boot ROM 256 bytes of RAM 512 bytes of XRAM 8/16 Kbytes of Flash; or8/16 Kbytes...

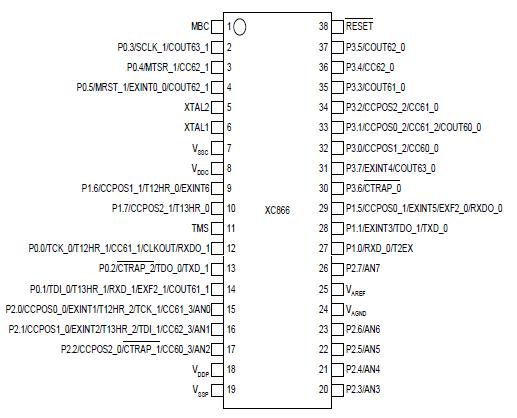

XC866: Features: • High-performance XC800 Core compatible with standard 8051 processor two clocks per machine cycle architecture (for memory access without wait state) two data pointers• On-chi...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Parameter | Symbol | Limit Values | Unit | Notes | |
min. | max. | ||||
Ambient temperature | TA | -40 | 125 | under bias | |
Storage temperature | TST | -65 | 125 | ||
Junction temperature | TJ | -40 | 150 | under bias | |
Voltage on power supply pin with respect to VSS |
VDDP | -0.5 | 6 | V | |
Voltage on core supply pin with respect to VSS |
VDDC | -0.5 | 3.25 | V | |
Voltage on any pin with respect to VSS |
VIN | -0.5 | VDDP + 0.5 or max. 6 |
V | Whatever is lower |
Input current on any pin during overload condition |
IIN | -10 | 10 | mA | |
Absolute sum of all input currents during overload condition |
|IIN| | - | 50 | mA |
Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
During absolute maximum rating overload conditions (VIN > VDDP or VIN < VSS) the voltage on VDDP pin with respect to ground (VSS) must not exceed the values defined by the absolute maximum ratings.
The XC866 is based on a high-performance 8-bit Central Processing Unit (CPU) that is compatible with the standard 8051 processor. While the standard 8051 processor is designed around a 12-clock machine cycle, the XC866 CPU uses a 2-clock machine cycle. This allows fast access to ROM or RAM memories without wait state. Access to the Flash memory, however, requires an additional wait state (one machine cycle). The instruction set consists of 45% one-byte, 41% two-byte and 14% three-byte instructions.
The XC866 CPU provides a range of debugging features, including basic stop/start, single-step execution, breakpoint support and read/write access to the data memory, program memory and SFRs.
Figure 5 shows the CPU functional blocks.
