XC74WLU04ASR

Number of Inputs: 1
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Features: -
Voltage - Supply: 2 V ~ 5.5 V
Current - Quiescent (Max): 1µA
Current - Output High, Low: 8mA, 8mA
Logic Type: Inverter
Logic Level - Low: 0.3 V ~ 1.1 V
Logic Level - High: 1.7 V ~ 4.4 V
Number of Circuits: 3
Max Propagation Delay @ V, Max CL: 7ns @ 5V, 50pF
Packaging: Tape & Reel (TR)
Package / Case: 8-TSSOP, 8-MSOP (0.110", 2.80mm Width)
Manufacturer: Torex Semiconductor Ltd
Series: 74WL
Supplier Device Package: 8-MSOPB


Features:

High Speed Operations : tpd = 2.3ns (TYP.) (V_CC=5V)
Operating Voltage Range : 2V ~ 5.5V
Low Power Consumption : 1A (MAX.)@Ta=25
CMOS Logic Triple Inverter(Unbufferd)
Small Package : MSOP-8B


Application

Palmtops
Digital equipment

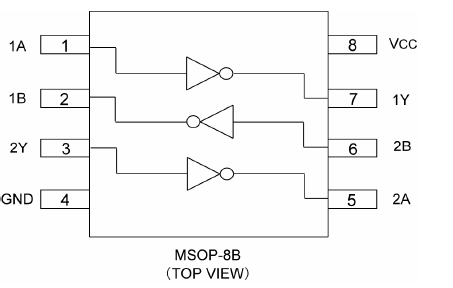

Pinout




Specifications

PARAMETER	SYMBOL	RATINGS	UNITS
Supply Voltage	VCC	-0.5~+6.0	V
Input Voltage	VIN	-0.5~+6.0	V
Output Voltage	VOUT	-0.5~VCC+0.5	V
Input Diode Current	IIK	-20	mA
Output Diode Current	IOK	±20	mA
Switch Output Current	IOUT	±25	mA
VCC,GND Current	ICC,IGND	±50	mA
Power Dissipation (Ta = 25)	Pd	300	mW
Storage Temperature Range	Tstg	-65~+150

Note : Voltage is all ground standardized.


Description

XC74WLU04ASR is triple inverter (unbuffered) manufactured using silicon gate CMOS processes. The small supply current, which is one of the features of the CMOS logic, gives way to high speed operations which enables LS-TTL.

With wave forming buffers connected internally, stabilized output can be achieved as the series offers high noise immunity.

As the series is integrated into a mini molded, MSOP-8B package, high density mounting is possible.
