XC74WL32AASR

Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Number of Inputs: 2
Features: -
Voltage - Supply: 2 V ~ 5.5 V
Current - Quiescent (Max): 1µA
Current - Output High, Low: 8mA, 8mA
Logic Level - Low: 0.5 V ~ 1.65 V
Logic Level - High: 1.5 V ~ 3.85 V
Max Propagation Delay @ V, Max CL: 7.5ns @ 5V, 50pF
Logic Type: OR Gate
Number of Circuits: 2
Packaging: Tape & Reel (TR)
Package / Case: 8-TSSOP, 8-MSOP (0.110", 2.80mm Width)
Manufacturer: Torex Semiconductor Ltd
Series: 74WL
Supplier Device Package: 8-MSOPB


Features:

High Speed Operations        : tpd = 3.8ns TYP (V_CC=5V)
Operating Voltage Range     : 2V ~ 5.5V
Low Power Consumption     : 1µA (max)
Small Package                      : MSOP-8B


Application

·Palmtops
·Digital Equipment

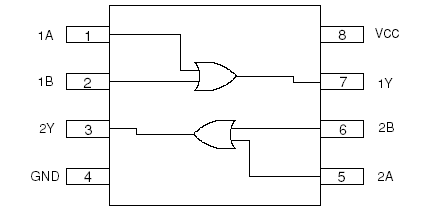

Pinout




Specifications

PARAMETER	SYMBOL	RATINGS	UNITS
Power Supply Voltage	VCC	-0.5~ +6.0	V
Input Voltage	VIN	-0.5~ +6.0	V
Output Voltage	VOUT	-0.5 ~ VCC +0.5	V
Intput Diode Current	LIK	-20	mA
Output Diode Current	LOK	±20	mA
Output Current	IOUT	±25	mA
VCC,GND Current	ICC,IGND	±50	mA
Power Dissipdtion (Ta=25)	PD	300	mW
Storage Temperature	Tstg	- 65 ~ + 150

Description

XC74WL32AASR is dual 2-input OR gate manufactured using silicon gate CMOS processes. The small quiescent current, which is one of the features of the CMOS logic, gives way to high speed operations which enables LS-TTL.

With wave forming buffers connected internally, stabilized output can be achieved as the series offers high noise immunity.

As the series is integrated into a mini molded, MSOP-8B package, high density mounting is possible.
