XC74WL125ASR

Logic Type: Buffer/Line Driver, Non-Inverting
Number of Bits per Element: 1
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Current - Output High, Low: 8mA, 8mA
Voltage - Supply: 2 V ~ 5.5 V
Number of Elements: 2
Packaging: Tape & Reel (TR)
Package / Case: 8-TSSOP, 8-MSOP (0.110", 2.80mm Width)
Series: 74WL
Manufacturer: Torex Semiconductor Ltd
Supplier Device Package: 8-MSOPB


Features:

·High Speed Operations : tpd = 3.8ns TYP (VCC=5V)
·Operating Voltage Range: 2V ~ 5.5V
·Low Power Consumption: 2µA (max)
·Small Package : MSOP-8B


Application

·Palmtops
·Digital Equipment

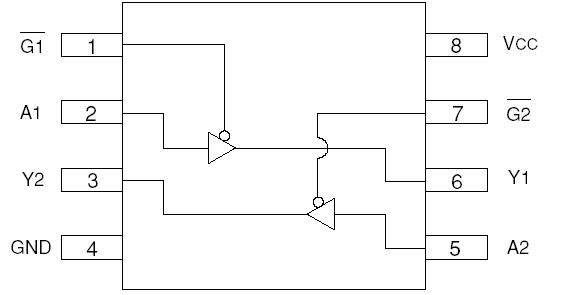

Pinout




Specifications

PARAMETER	SYMBOL	RATINGS	UNITS
Power Supply Voltage	VCC	-0.5 ~ +6.0	V
Input Voltage	VIN	-0.5 ~ +6.0	V
Output Voltage	VOUT	-0.5 ~ VCC +0.5	V
Input Diode Current	IIK	-20	mA
Output Diode Current	IOK	±20	mA
Output Current	IOUT	±25	mA
VCC ,GND Current	ICC, IGND	±50	mA
Continuous Total Power Dissipation (Ta=55°C)	Pd	300	mW
Storage Temperature	Tstg	-65 ~ +150	°C

Description

XC74WL125ASR is Dual Bus Buffer manufactured using silicon gate CMOS processes. The small quiescent current, which is one of the features of the CMOS logic, gives way to high speed operations which enables LS-TTL.

With wave forming buffers connected internally, stabilized output can be achieved as the series offers high noise immunity.

As the series is integrated into a mini molded, MSOP-8B package, high density mounting is possible.
