Product Details

Description

Features:

`High Speed Operations tpd = 3ns TYP
`Operating Voltage Range 2V to 5.5V
`Low Power Consumption 1µA MAX (Ta = 25)
`Low ON Resistance 22Ω TYP
`Small Package SOT-25

Application

·Palmtops
·Digital Equipment

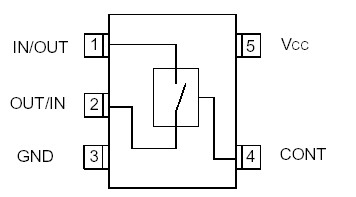

Pinout

Connection Diagram

Specifications

PARAMETER	SYMBOL	RATINGS	UNITS
Power Supply Voltage	V_CC	-0.5 ~ +6.0	V
Control Input Voltage	V_CONT	-0.5 ~ +6.0	V
Switch Output Voltage	V_out	-0.5 ~ V_CC +0.5	V
Control Input Diode Current	I_IK	-20	mA
Switch Output Diode Current	I_OK	±20	mA
Switch Output Current	I_OUT	±25	mA
V_CC, G_ND Current	I_CC, I_GND	±50	mA
Power Dissipation (Ta = 25)	P_d	200	mW
Storage Temperature	T_stg	-65 ~+150

Note : Voltage is all Ground standardized.

Description

XC74UL4066M is CMOS Analog Switch manufactured using silicon gate CMOS processes. The small quiescent current, which is one of the features of the CMOS logic, gives way to high speed analog or digital signal switching. As the series is integrated into a mini molded, SOT-25 package, high density mounting is possible.
