XC74UL32AA

Features:

·High Speed Operation : tpd=3.8ns TYP
·Operating Voltage Range: 2V~5.5V
·Low Power Consumption: 1µA (max)
·Ultra Small Package : SSOT-25 and SOT-25


Application

·Palmtops
·Digital Equipment

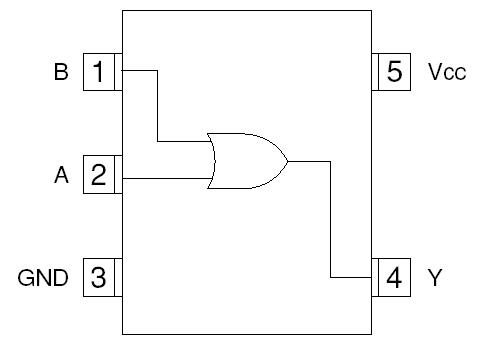

Pinout




Specifications

PARAMETER	SYMBOL	RATINGS	UNITS
Power Supply Voltage	VCC	-0.5 ~ +6.0	V
Input Voltage	VIN	-0.5 ~ +6.0	V
Output Voltage	VOUT	-0.5 ~ VCC +0.5	V
Input Diode Current	IIK	-20	mA
Output Diode Current	IOK	±20	mA
Output Current	IOUT	±25	mA
VCC ,GND Current	ICC, IGND	±50	mA
Continuous Total Power Dissipation (Ta=55°C)	Pd	150	mW
Storage Temperature	Tstg	-65 ~ +150	°C

Note: Voltage is all Ground standardized.


Description

The XC74UL32AA is a 2-input CMOS OR gate, manufactured using silicon gate CMOS fabrication.

CMOS low power circuit operation makes high speed LS-TTL operations achievable.

With a wave forming buffer connected internally, stabilized output can be achieved as the circuit offers high noise immunity.

As the XC74UL32AA is integrated into mini molded, SSOT-25 and SOT- 25 packages, high density mounting is possible.
