XC6406

Features: ·Maximum Output Current : 400mA (within thepower dissipation)·Maximum Operating Voltage : 8.0V·Output Setting Voltage Range : 1.8 ~ 6.0V (100mV steps)·Accuracy :􀊶2%·Low Power Consumption : 20􀐖A (TYP.)·Line Regulation : 0.2% / V (TYP.)·Output Voltage Temperature Range : ...

product image

XC6406 Picture
See larger image
SeekIC No. : 004547994 Detail

XC6406: Features: ·Maximum Output Current : 400mA (within thepower dissipation)·Maximum Operating Voltage : 8.0V·Output Setting Voltage Range : 1.8 ~ 6.0V (100mV steps)·Accuracy :􀊶2%·Low Power Cons...

XC6406 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XC6406
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Maximum Output Current : 400mA (within thepower dissipation)
·Maximum Operating Voltage : 8.0V
·Output Setting Voltage Range : 1.8 ~ 6.0V (100mV steps)
·Accuracy :􀊶2%
·Low Power Consumption : 20􀐖A (TYP.)
·Line Regulation : 0.2% / V (TYP.)
·Output Voltage Temperature Range : 100 ppm/􀋆 (TYP.)
·Operating Temperature Range : - 40􀋆 ~ 85􀋆
·Small Packages : SOP-8 : SOP-8FD (Under development)


Application

·CD-ROM, DVD
·Battery powered equipment
·PDAs
·Cameras, Video recorders
·Portable AV equipment
·Reference voltage

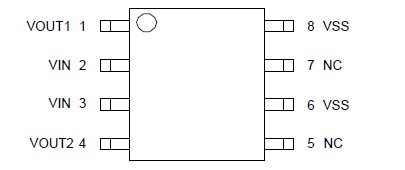

Pinout

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATINGS
UNITS

Input Voltage

VIN

10

V

Output Current
IOUT1 + IOUT2
600

mA

Output Voltage
VOUT1 / 2
VSS 0.3 ~ VIN + 0.3
V

EN Pin Voltage
VEN1 / 2
VSS 0.3 ~ VIN + 0.3
V
Power Dissipation
SOP-8
Pd
300
mW
SOP-8FD
300

Operating Temperature Range
Topr
- 40 ~ + 85
``
Storage Temperature Range
Tstg
- 55 ~ + 125
``



Description

The XC6406 series are highly precise, low power consumption, dual positive regulators. They are fabricated using Torex's CMOS process. Performance features of the XC6406 include high current and low dropout voltage, and the series features a voltage reference, and error amplifier, a current limiter and a phase compensation circuit plus a driver transistor.

Output voltage of each regulator 1 and regulator 2 XC6406 is selectable in 100mV steps within the range of 1.8V to 6.0V. The XC6406 series is available in the SOP-8 package.
