XC6385

Low noise
Operating voltage range : 0.9V~10V
Output voltage range : 2.0V~7.0V (programmable in 0.1Vsteps)
Output voltage accuracy: ±2.5%
Maximum oscillator frequency: 100kHz (±15%)
Built-in switching transistor

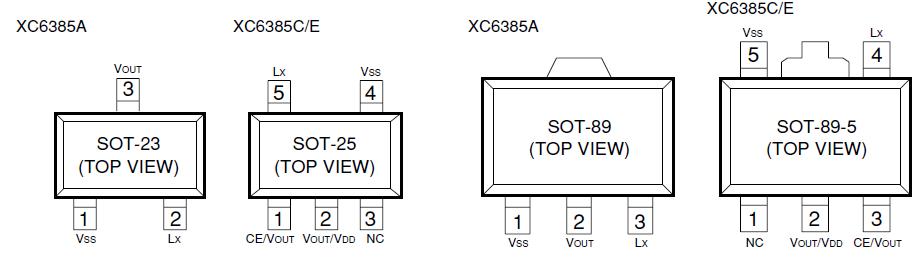

CE function and/or separated VDD/VOUT types selectable with 5 pin packages
Small package : SOT-23/25 mini-mold (3pin, 5pin)
SOT-89/89-5 mini-power mold (3 pin, 5 pin)

The XC6385 series are a group of PFM (frequency) controlled step-up DC/DC converters. The XC6385 series employs CMOS process and laser trimming technologies to attain low power and high accuracy. A common problem among pagers is one of noise, but with the XC6385, high frequency noise that occurs during switching is reduced. Output voltage is selectable in 0.1V steps within 2.0V ~ 7.0V and maximum frequency is 100kHz (Typ.) With a built-in switching transistor, a step-up circuit can be configured using a coil, diode and capacitor connected externally. Also available is a CE (chip enable) function that reduces power consumption during shut-down mode, and an independent VDD pin function (separated power supply and voltage detect pins) for fly-back circuits. SOT-89-5 and SOT-23/25 small packages
