XC6381

Operating (start-up) voltage range: 0.9V~10V
Output voltage range : 2.0V~7.0V in 0.1V increments
Highly accurate : Set-up voltage ±2.5%
Maximum oscillator frequency: 155kHz (±15%)
Duty Ratio : 58% (±5%)
Both built-in switching transistor and external types are available
Five-lead packaged units offer either Chip Enable or
independent VOUT pin option.

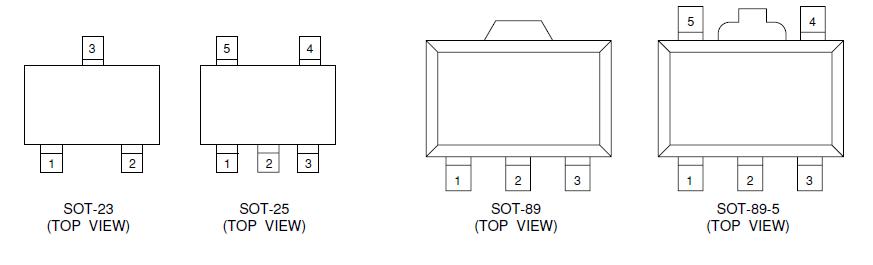

Small package : SOT-23, 25 mini-mold (3-pin, 5-pin)
SOT-89, 89-5 mini-power mold (3-pin, 5-pin)

The XC6381 series is a group of PFM controlled step-up DC/DC converters.

The XC6381 series employs CMOS process and laser trimming technologies so as to attain low power and high accuracy. Max. oscillator frequency is trimmed to 155kHz (accuracy: ±15%). Every built-in switching transistor type enables a step-up circuit to be configured using only three external components ; a coil, a diode, and a capacitor. External transistor versions are available to accommodate high output current applications.

Both built-in and external transistor types of XC6381 include 5-pin and 3-pin packages, which are provided with either a CE (chip enable) function that reduces power consumption during shut-down mode, or a VDD pin function (separated power and voltage detect pins). SOT-23, SOT-25, and SOT-89-5 super mini-mold packages
