Product Details

Description



Features:

Output Frequencies : 9MHz to 80MHz (Qo = f0 x N/M)
Reference Oscillation (f0) : 14KHz to 35MHz
Divider Ratios (M) : Selectable from divisions of 1 to 2047
Multiplier Ratios (N) : Selectable from multiplications of 20 to 2047
Output : 3 State Q1 output selectable from reference oscillation, compar
                ative frequencies, PLL output frequencies/2, comparative frequencies/2.
Operating Voltage Range : 3.0V to 5.5V
Low Power Consumption : CMOS ( standby function included) *
Ultra Small Package : SOT - 26 mini mold


Application

􀀀Crystal Oscillation Modules
􀀀Personal Computers
􀀀PDAs
􀀀Portable Audio Systems
􀀀Various System Clocks


Pinout

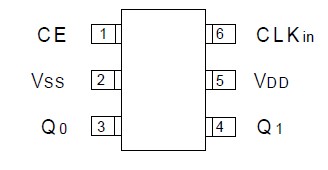

Connection Diagram


Specifications

PARAMETER

SYMBOL

CONDITIONS

UNITS

Supply Voltage

VDD

VSS - 0.3 to VSS + 7.0

V

XT Pin Voltage

VXT

VSS - 0.3 to VDD + 0.3

V

/XT Pin Voltage

V/XT

VSS - 0.3 to VDD + 0.3

V

CE Pin Voltage

VCE

VSS - 0.3 to VDD + 0.3

V

Qo Pin Voltage

VQO

VSS - 0.3 to VDD + 0.3

V

Qo Output Current

IQO

+/- 50

mA

 Q1 Output Current

 IQ1

 +/- 50

 mA

Power Dissipation

PD

150

mW

Ambient Temp.

Topr

-30 to +80

Storage Temp.

Tstg

-40 to +125




Description

The XC25BS3 series are high frequency, low power consumption PLL clock generator ICs with built-in crystal oscillator circuits, divider circuits & multiplier PLL circuits.Laser trimming gives the option of being able to select from divider ratios (M) of 1 to 2047 and multiplier ratios (N) of 20 to 2047.

Output frequency (Qo) of XC25BS3 is equal to reference oscillation (f0) multiplied by N/M, within a range of 9MHz to 80MHz. Q1 output is selectable from reference oscillation, comparative frequencies, PLL output frequencies /2, comparative frequencies/2. Further, comparative frequencies, within a range of 14KHz to 500KHz, can be obtained by dividing the reference oscillation. By halting oscillation via the CE pin, consumption current can be controlled. Output will be one of high impedance.
