Features:

·Oscillation Frequency: 4MHz to 30MHz (Fundamental)
                                   20MHz to 125MHz (3rd Overtone)
·Divider Ratio: Selectable from f0/1, f0/2, f0/4, f0/8.
                      ( f0/2, f0/4, f0/8 are fundamental only)
·Output: 3-State
·Operating Voltage Range: 3.3V ± 10%, 5.0V ± 10%
·Low Power Consumption: Stand -by function included
                  Selectable from C/E type and O/E type
·Chip Form: Chip Size 1.3 × 0.8 mm
·Ultra Small Package: SOT-26 mini mold


Application

·  Crystal Oscillation Modules
·  Micro computer, DSP Clocks
·  Communication Equipment
·  Various System Clocks


Pinout

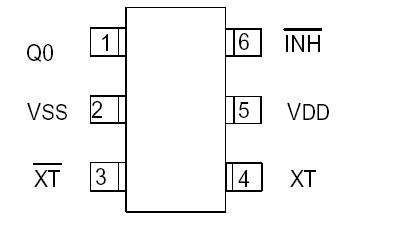

Connection Diagram


Specifications

PARAMETER SYMBOL CONDITIONS UNITS
Supply Voltage VDD Vss - 0.3 to Vss + 7.0 V
Input Voltage VIN Vss - 0.3 to VDD + 0.3 V
Continuous Total Power
Dissipation		 Pd 250* mW
Operating Ambient
Temperature		 Topr -40 ~ +85
°C
Storage Temperature Tstg -65 ~ +150 (Chip Form)
°C
-55 ~ +125 (SOT-26)
*When implemented on a glass epoxy PCB (SOT26 package)


Description

The XC2164 series are high frequency, low current consumption CMOS ICs with built-in crystal oscillator and divider circuits.

For fundamental oscillation, output is selectable from any one of the following values for f0 : f0/1, f0/2, f0/4, f0/8. With oscillation capacitors and a feedback resistor built-in, it is possible to configure a stable fundamental oscillator or 3rd overtone oscillator using only an external crystal. Also available is an external oscillation capacitor / external oscillation feedback resistor type which makes oscillation frequency control possible. The XC2164 series are integrated into SOT-26 packages.

The XC2164 series is also available in chip form.
