XA-S3

Features: • 2.7 V to 5.5 V operation.• 32 K bytes of on-chip EPROM/ROM program memory.• 1024 bytes of on-chip data RAM.• Supports off-chip addressing up to 16 megabytes (24 address lines). A clock output reference is added to simplify external bus interfacing.• High p...

product image

XA-S3 Picture
See larger image
SeekIC No. : 004547616 Detail

XA-S3: Features: • 2.7 V to 5.5 V operation.• 32 K bytes of on-chip EPROM/ROM program memory.• 1024 bytes of on-chip data RAM.• Supports off-chip addressing up to 16 megabytes (24 a...

XA-S3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XA-S3
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2.7 V to 5.5 V operation.
• 32 K bytes of on-chip EPROM/ROM program memory.
• 1024 bytes of on-chip data RAM.
• Supports off-chip addressing up to 16 megabytes (24 address lines). A clock output reference is added to simplify external bus interfacing.
• High performance 8-channel 8-bit A/D converter with automatic channel scan and repeated read functions. Completes a conversion in 4.46 microseconds at 30 MHz. Alternate operating mode allows 10-bit conversion results.
• Three standard counter/timers with enhanced features. All timers have a toggle output capability.
• Watchdog timer.
• 5-channel 16-bit Programmable Counter Array (PCA).
• I2C-bus serial I/O port with byte-oriented master and slave functions.
• Two enhanced UARTs with independent baud rates.
• Seven software interrupts.
• Active low reset output pin indicates all reset occurrences (external reset, watchdog reset and the RESET instruction). A reset source register allows program determination of the cause of the most recent reset.
• 50 I/O pins, each with 4 programmable output configurations.
• 30 MHz operating frequency at 2.75.5 V VDD.
• Power saving operating modes: Idle and Power-down. Wake-up from power-down via an external interrupt is supported.
• 68-pin PLCC and 80-pin PQFP packages.


Pinout

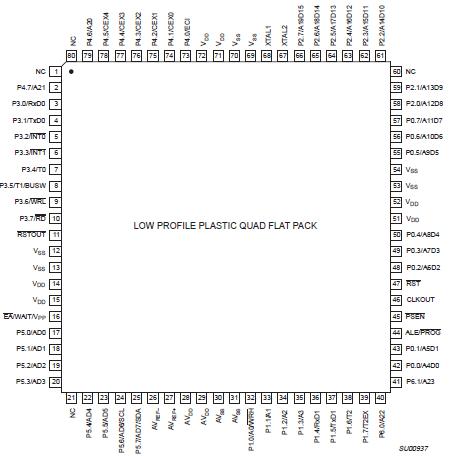

Connection Diagram


Specifications

PARAMETER
RATING
UNIT
Operating temperature under bias
55 to +125
Storage temperature range
65 to +150
Voltage on EA/VPP pin to VSS
0 to +13.0
V
Voltage on any other pin to VSS
0.5 to VDD+0.5 V
V
Maximum IOL per I/O pin
15
mA
Power dissipation (based on package heat transfer, not device power consumption)
1.5
W



Description

The XA-S3 device is a member of Philips Semiconductors' XA (eXtended Architecture) family of high performance 16-bit single-chip microcontrollers.

The XA-S3 device combines many powerful peripherals on one chip. With its high performance A/D converter, timers/counters,watchdog, Programmable Counter Array (PCA), I2C interface, dual UARTs, and multiple general purpose I/O ports, it is suited for general multipurpose high performance embedded control functions.
