XA-H4

Features: • Large Memory Support• De-multiplexed Address/Data Bus• Six Programmable Chip Selects Support for Unified Memory allows easy user modification of all code External ISP Flash support for easy code download• Dynamic Bus Sizing each of 6 Chip Selects can be progra...

product image

XA-H4 Picture
See larger image
SeekIC No. : 004547594 Detail

XA-H4: Features: • Large Memory Support• De-multiplexed Address/Data Bus• Six Programmable Chip Selects Support for Unified Memory allows easy user modification of all code External ISP ...

XA-H4 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XA-H4
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Large Memory Support
• De-multiplexed Address/Data Bus
• Six Programmable Chip Selects Support for Unified Memory allows easy user modification of all code External ISP Flash support for easy code download
• Dynamic Bus Sizing each of 6 Chip Selects can be programmed for 8-bit or 16-bit bus.
• Dynamic Bus Timing each of 6 chip selects has individual programmable bus timing.
• 32 Programmable General Purpose I/O Pins
• Four USARTs with 230.4 kbps capability
• Eight DMA Channels


Pinout

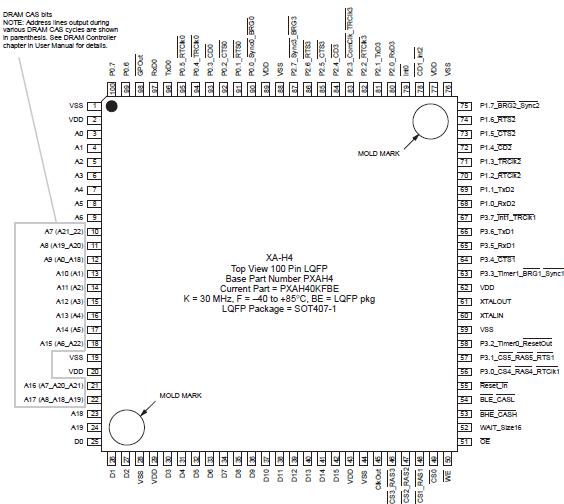

Connection Diagram


Specifications

Parameter
Rating
Unit
Operating temperature under bias
55 to +125
Storage temperature range
65 to +150
Voltage on any other pin to VSS
0.5 to VDD+0.5 V
v
Maximum IOL per I/O pin
15
mA
Power dissipation (based on package heat transfer, not device power consumption)
1.5
W



Description

The powerful 16-bit XA CPU core and rich feature set make the XA-H3 and XA-H4 devices ideal for high-performance real-time applications such as industrial control and networking. By supporting of up to 32 MB of external memory, these devices provide a low-cost solution to embedded applications of any complexity. Features like DMA, memory controller and four advanced USARTs help solve I/O intensive tasks with a minimum of CPU load.

The XA-H3 feature set is a subset of the XA-H4 (see Table 1). The XA-H3/H4 devices are members of the Philips XA (eXtended Architecture) family of high performance 16-bit microcontrollers.

The XA-H3 and XA-H4 are designed to significantly minimize the need for external components.
