X9C503

Features:

• Solid-state potentiometer
• 3-wire serial interface
• 100 wiper tap points
-Wiper position stored in nonvolatile memory and recalled on power-up
• 99 resistive elements
-Temperature compensated
-End to end resistance, ±20%
-Terminal voltages, ±5V
• Low power CMOS
-V_CC = 5V
-Active current, 3mA max.
-Standby current, 750µA max.
• High reliability
-Endurance, 100,000 data changes per bit
-Register data retention, 100 years
• X9C102 = 1kΩ
• X9C103 = 10kΩ
• X9C503 = 50kΩ
• X9C104 = 100kΩ
• Packages
-8-lead SOIC and DIP
• Pb-free plus anneal available (RoHS compliant)

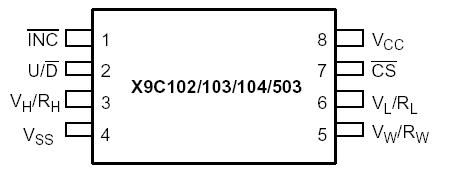

Pinout






Specifications

Temperature under bias ...............-65°C to +135°C
Storage temperature ................... -65°C to +150°C
Voltage on CS, INC, U/D and V_CC
with respect to VSS ..................................-1V to +7V
Voltage on VH/RH and VL/RL
referenced to VSS .................................... -8V to +8V
∆V = |V_H/R_H - VL/R_L|
X9C102 .................................................................4V
X9C103, X9C503, and X9C104 ............................10V
Lead temperature (soldering, 10 seconds)...+300°C
I_W (10 seconds) ...............................................8.8mA
COMMENT
Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only; functional operation of the device (at these or any other conditions above those listed in the operational sections of this specification) is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

Description

The X9Cxxx are Intersil digitally controlled (XDCP) potentiometers. The X9Cxxx  consists of a resistor array, wiper switches, a control section, and nonvolatile memory. The wiper position is controlled by a three-wire interface. The potentiometer is implemented by a resistor array composed of 99 resistive elements and a wiper switching network. Between each element and at either end are tap points accessible to the wiper terminal. The position of the wiper element is controlled by the CS, U/D, and INC inputs. The position of the wiper can be stored in nonvolatile memory and then be recalled upon a subsequent power-up operation. The X9Cxxx  can be used as a three-terminal potentiometer or as a two-terminal variable resistor in a wide variety of applications including: control parameter adjustments signal processing
