X9421

Features: • Single Voltage Potentiometer• 64 Resistor Taps• SPI Serial Interface for Write, Read, and Transfer Operations of the Potentiometer• Wiper Resistance, 150Ω Typical at 5V• 4 Non-Volatile Data Registers• Non-Volatile Storage of Multiple Wiper Posi...

product image

X9421 Picture
See larger image
SeekIC No. : 004547523 Detail

X9421: Features: • Single Voltage Potentiometer• 64 Resistor Taps• SPI Serial Interface for Write, Read, and Transfer Operations of the Potentiometer• Wiper Resistance, 150Ω T...

X9421 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
X9421
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single Voltage Potentiometer
• 64 Resistor Taps
• SPI Serial Interface for Write, Read, and Transfer Operations of the Potentiometer
• Wiper Resistance, 150Ω Typical at 5V
• 4 Non-Volatile Data Registers
• Non-Volatile Storage of Multiple Wiper Positions
• Power-on Recall. Loads Saved Wiper Position on Power-up.
• Standby Current < 5µA Max
• VCC : 2.7V to 5.5V Operation
• 2.5kΩ, 10kΩ End to End Resistance
• 100 yr. Data Retention
• Endurance: 100, 000 Data Changes per Bit per Register
• 14 Ld TSSOP, 16 Ld SOIC
• Low Power CMOS
• Pb-Free Plus Anneal Available (RoHS Compliant)




Application

• Vary the gain of a voltage amplifier
• Provide programmable dc reference voltages for comparators and detectors
• Control the volume in audio circuits
• Trim out the offset voltage error in a voltage amplifier circuit
• Set the output voltage of a voltage regulator
• Trim the resistance in Wheatstone bridge circuits
• Control the gain, characteristic frequency and Q-factor in filter circuits
• Set the scale factor and zero point in sensor signal conditioning circuits
• Vary the frequency and duty cycle of timer ICs
• Vary the dc biasing of a pin diode attenuator in RF circuits
• Provide a control variable (I, V, or R) in feedback circuits
• Adjust the contrast in LCD displays
• Control the power level of LED transmitters in communication systems
• Set and regulate the DC biasing point in an RF power amplifier in wireless systems
• Control the gain in audio and home entertainment systems
• Provide the variable DC bias for tuners in RF wireless systems
• Set the operating points in temperature control systems
• Control the operating point for sensors in industrial systems
• Trim offset and gain errors in artificial intelligent systems




Pinout

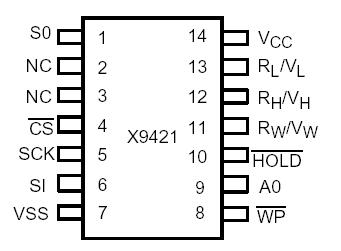

Connection Diagram




Specifications

Temperature under bias. . . . . . . . . . . . .-65°C to +135°C
Storage temperature . . . . . . . . . . . . . . .-65°C to +150°C
Voltage on SCK any address input
with respect to VSS. . . . . . . . . . . . . . . . . ......-1V to +7V
∆V = | (VH - VL) | . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 5V
Lead temperature (soldering, 10 seconds) . . . . . . 300°C
IW (10 seconds) . . . . . . . . . . . . . . . . . . . . . . . . ....±6mA
Any VH/RH, VL/RL, VW/RW . . . . . . . . . . ....... VSS to VCC




Description

The X9421 integrates a single digitally controlled potentiometer (XDCP) on a monolithic CMOS integrated circuit.

The X9421 digital controlled potentiometer is implemented using 63 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The position of the wiper on the array is controlled by the user through the SPI bus interface. The potentiometer has associated with it a volatile Wiper Counter Register (WCR) and a four nonvolatile Data Registers that can be directly written to and read by the user. The contents of the WCR controls the position of the wiper on the resistor array though the switches. Powerup recalls the contents of the default data register (DR0) to the WCR.

The  X9421 XDCP can be used as a three-terminal potentiometer or as a two terminal variable resistor in a wide variety of applications including control, parameter adjustments, and signal processing.
