Features:

• Solid-state potentiometer
• 3-wire serial interface
• Terminal voltage, 0 to +10V
• 100 wiper tap points
-Wiper position stored in nonvolatile memory
and recalled on power-up
• 99 resistive elements
-Temperature compensated
-End to end resistance range ± 20%
• Low power CMOS
-VCC = 5V
-Active current, 3mA max.
-Standby current, 1mA max.
• High reliability
-Endurance, 100,000 data changes per bit
-Register data retention, 100 years
• RTOTAL value = 10k and 50k
• Packages
-8 Ld SOIC and DIP
• Pb-free plus anneal available (RoHS compliant)




Application

• LCD bias control
• DC bias adjustment
• Gain and offset trim
• Laser diode bias control
• Voltage regulator output control




Pinout

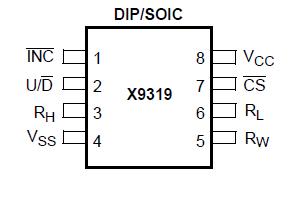

Connection Diagram




Specifications

Junction Temperature under bias .........-65°C to +135°C
Storage temperature ............... -65°C to +150°C
Voltage on CS, INC, U/D and VCC
with respect to VSS .................... -1V to +7V
RH, RW, RL to ground ......................+12V
Lead temperature (soldering 10s)...............300°C
IW (10s) ............................±6mA






Description

The Intersil X9319 is a digitally controlled potentiometer (XDCP). The device consists of a resistor array, wiper switches, a control section, and nonvolatile memory. The wiper position is controlled by a 3-wire interface.

The X9319 potentiometer is implemented by a resistor array composed of 99 resistive elements and a wiper switching network. Between each element and at either end are tap points accessible to the wiper terminal. The position of the wiper element is controlled by the CS,U/D , and INC inputs. The position of the wiper can be stored in nonvolatile memory and then be recalled upon a subsequent power-up operation.

The X9319 can be used as a three-terminal potentiometer for voltage control or as a two-terminal variable resistor for current control in a wide variety of applications.
