X93156

Temperature under bias . . . . . . . . . . . . . . . -65°C to +135°C
Storage temperature . . . . . . . . . . . . . . . . . .-65°C to +150°C
Voltage on CS, INC, U/D, RH, RL and V_CC
with respect to VSS. . . . . . . . . . . . . . . . . . . . . . . .-1V to +6.5V
Lead temperature (soldering 10s) . . . . . . . . . . . . . . . . 300°C
Maximum reflow temperature (40s) . . . . . . . . . . . . . . . 240°C
Maximum resistor current . . . . . . . . . . . . . . . . . . . . . . . . . .2mA
CAUTION: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only; the functional operation of the device (at these or any other conditions above those listed in the operational sections of this specification) is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

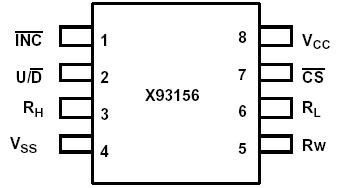

The Intersil X93156 is a three-terminal digitally controlled potentiometer (XDCP). The device consists of a resistor array, wiper switches, a control section, and nonvolatile memory. The wiper position is controlled by an Up/Down interface.

The X93156 potentiometer is implemented by a resistor array composed of 31 resistive elements and a wiper switching network. The position of the wiper element is controlled by the CS, U/D, and INC inputs. The position of the wiper can be stored in nonvolatile memory and then be recalled upon a subsequent power-up operation.

The X93156 device can be used as a three-terminal potentiometer or as a two terminal variable resistor in a wide variety of applications including the programming of bias voltages, LCD brightness and contrast control as well as the implementation of ladder networks.
