Features:

• Solid-State Potentiometer
• 3-Wire Serial Interface
• 32 Wiper Tap Points
- Wiper position stored in nonvolatile memory and recalled on power-up
• 31 Resistive Elements
- Temperature compensated
- Maximum resistance tolerance of ±30%
- Terminal voltage, 0 to VCC
• Low Power CMOS
- VCC = 3V±10%
- Active current, 250µA max.
- Standby current, 1µA max.
• High Reliability
- Endurance 200,000 data changes per bit
- Register data retention, 100 years
• RTOTAL Value = 50kΩ
• Packages
- 8 Ld MSOP, TDFN
• Pb-Free Plus Anneal Available (RoHS Compliant)

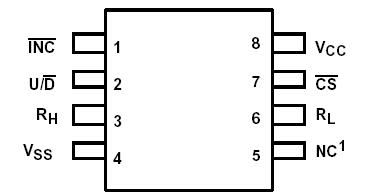

Pinout






Specifications

Temperature under bias . . . . . . . . . . . . . . . -65°C to +135°C
Storage temperature . . . . . . . . . . . . . . . . . .-65°C to +150°C
Voltage on CS, INC, U/D, RH, RL and VCC
with respect to VSS . . . . . . . . . . . . . . . . . . . . . . . -1V to +6.5V
Lead temperature (soldering 10s) . . . . . . . . . . . . . . . . 300°C
Maximum resistor current . . . . . . . . . . . . . . . . . . . . . . . . . .2mA
CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.






Description

The Intersil X93154 is a digitally controlled potentiometer (XDCP). The device consists of a resistor array, wiper switches, a control section, and nonvolatile memory. The wiper position is controlled by a 3-wire interface.

The X93154 potentiometer is implemented by a resistor array composed of 31 resistive elements and a wiper switching network. The position of the wiper element is controlled by the CS, U/D, and INC inputs. The position of the wiper can be stored in nonvolatile memory and then be recalled upon a subsequent power-up operation.

The X93154 is connected as a two-terminal variable resistor and can be used in a wide variety of applications including:
- Bias and Gain Control
- LCD Contrast Adjustment
