Product Details

Description



Features:

• Four potentiometers in one package
• 256 resistor taps/pot0.4% resolution
• 2-wire serial interface
• Wiper resistance, 40 Ω typical @ V+ = 5V, V- = -5V
• Four nonvolatile data registers for each pot
• Nonvolatile storage of wiper position
• Standby current < 5µA max (total package)
• Power supplies
-VCC = 2.7V to 5.5V
-V+ = 2.7V to 5.5V
-V- = -2.7V to -5.5V
• 100K Ω , 50K Ω total pot resistance
• High reliability
-Endurance 100,000 data changes per bit per register
-Register data retention 100 years
• 24-lead SOIC, 24-lead TSSOP, 24-lead CSP (Chip Scale Package)
• Dual supply version of X9259





Pinout

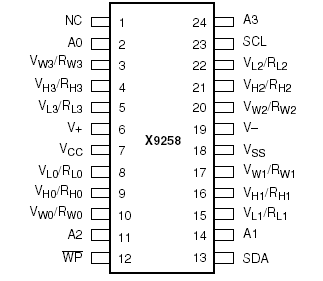

  Connection Diagram




Specifications

Temperature under bias ....................65 to +135
Storage temperature .........................65 to +150
Voltage on SDA, SCL or any address input
with respect to VSS..................................1V to +7V
Voltage on V+ (referenced to VSS)....................... 10V
Voltage on V- (referenced to VSS)........................-10V
(V+) (V-)........................................................... 12V
Any VH/RH................................................................V+
Any VL/RL.......................................................... VLead
temperature (soldering, 10 seconds)................. 300
IW (10 seconds)................................................±15mA

Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only; functional operation of the device (at these or any other conditions above those listed in the operational sections of this specification) is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.






Description

The X9258 integrates 4 digitally controlled potentiometers (XDCP) on a monolithic CMOS integrated circuit.

The X9258 digitally controlled potentiometer is implemented using 255 resistive elements in a series array. Between each element are tap points connected to the wiper terminal through switches. The position of the wiper on the array is controlled by the user through the 2-wire bus interface. Each X9258 potentiometer has associated with it a volatile Wiper Counter Register (WCR) and 4 nonvolatile Data Registers (DR0:DR3) that can be directly written to and read by the user. The contents of the WCR controls the position of the wiper on the resistor array though the switches. Power up recalls the contents of DR0 to the WCR.The XDCP can be used as a three-terminal potentiometer or as a two-terminal variable resistor in a wide variety of applications including control, parameter adjustments, and signal processing.
