Product Details

Description



Features:

• Low VCC detection and reset assertion
-Five standard reset threshold voltages
-Re-program low VCC reset threshold voltage using special programming sequence
-Reset signal valid to VCC = 1V
• Long battery life with low power consumption
-<1A max standby current
-<400A max active current during read
• 32Kbits of EEPROM
• Built-in inadvertent write protection
-Power-up/power-down protection circuitry
-Protect 0, 1/4, 1/2 or all of EEPROM array with Block Lock™ protection
-In circuit programmable ROM mode
• 2MHz SPI interface modes (0,0 & 1,1)
• Minimize EEPROM programming time
-32-byte page write mode
-Self-timed write cycle
-5ms write cycle time (typical)
• 2.7V to 5.5V and 4.5V to 5.5V power supply
operation
• Available packages
-14 Ld TSSOP, 8 Ld SOIC, 8 Ld PDIP
• Pb-free plus anneal available (RoHS compliant)

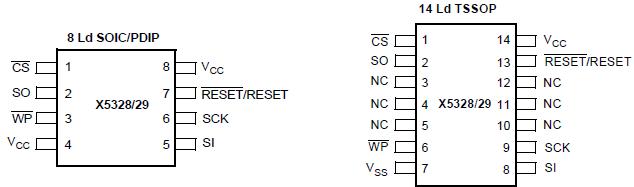

Pinout

Connection Diagram




Specifications

Temperature under bias .................... -65°C to +135°C
Storage temperature ........................ -65°C to +150°C
Voltage on any pin with
respect to VSS ........................................ -1.0V to +7V
D.C. output current ...................................................5mA
Lead temperature (soldering, 10s) ...................... 300°C




Description

These devices X5329 combine three popular functions, Poweron Reset Control, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package.This combination lowers system cost, reduces board space requirements, and increases reliability.

Applying power to the X5329 activates the power-on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor can execute code.

The X5329's low VCC detection circuitry protects the user's system from low voltage conditions by holding RESET/RESET active when VCC falls below a minimum VCC trip point. RESET/RESET remains asserted until VCC returns to proper operating level and stabilizes.Five industry standard VTRIP thresholds are available, however, Intersil's unique circuits allow the threshold to be reprogrammed to meet custom requirements or to fine-tune the threshold in applications requiring higher precision.
