Features:

• 200ms Power On Reset Delay
• Low Vcc Detection and Reset Assertion
-Five Standard Reset Threshold Voltages
-Adjust Low Vcc Reset Threshold Voltage using special programming sequence
-Reset Signal Valid to Vcc=1V
• Selectable Nonvolatile Watchdog Timer
-0.2, 0.6, 1.4 seconds
-Off selection
-Select settings through software
• Long Battery Life With Low Power Consumption
-<50A Max Standby Current, Watchdog On
-<1A Max Standby Current, Watchdog Off
• 2.7V to 5.5V Operation
• SPI Mode 0 interface
• Built-in Inadvertent Write Protection
-Power-Up/Power-Down Protection Circuitry
-Watchdog Change Latch
• High Reliability
• Available Packages
-8-Lead TSSOP
-8-Lead SOIC
-8 Pin PDIP





Pinout

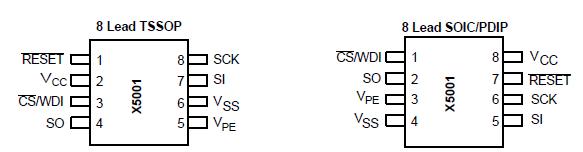

  Connection Diagram




Specifications

Temperature under Bias ........................65°C to +135°C
Storage Temperature .............................65°C to +150°C
Voltage on any Pin with Respect to VSS.......... 1.0V to +7V
D.C. Output Current ........................................................5mA
Lead Temperature (Soldering, 10 seconds)................300°C





Description

This X5001 combines three popular functions, Power on Reset, Watchdog Timer, and Supply Voltage Supervision in one package. This combination lowers system cost,reduces board space requirements, and increases reliability.

The Watchdog Timer X5001 provides an independent protection mechanism for microcontrollers. During a system failure,the device will respond with aRESET signal after a selectable time-out interval. The user selects the interval from three preset values. Once selected, the interval does not change, even after cycling the power.

The user's system is protected from low voltage conditions by the device's low Vcc detection circuitry. When Vcc falls below the minimum Vcc trip point, the system is reset. RESET is asserted until Vcc returns to proper operating levels and stabilizes. Five industry standard VTRIP thresholds are available, however, Xicor's unique circuits allow the thresold to be reprogrammed to meet custom requirements or to fine-tune the threshold for applications requiring higher precision.

The X5001 utilizes Xicor's proprietary Direct WriteTM cell for the Watchdog TImer control bits and the VTRIP storage
element, providing a minimum endurance of 100,000 write cycles and a minimum data retention of 100 years.
