X4163

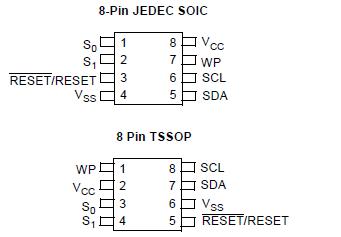

The X4163/5 combines four popular functions, Poweron Reset Control, Watchdog Timer, Supply Voltage Supervision, and Serial EEPROM Memory in one package.This combination lowers system cost, reduces board space requirements, and increases reliability.

Applying power to the device activates the power on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor can execute code.

The Watchdog Timer provides an independent protection mechanism for microcontrollers. When the microcontroller fails to restart a timer within a selectable time out interval, the device activates the RESET/RESET signal. The user selects the interval from three preset values. Once selected, the interval does not change, even after cycling the power.

The X4163's low V_CC detection circuitry protects the user's system from low voltage conditions, resetting the system when V_CC falls below the set minimum V_CC trip point. RESET/RESET is asserted until V_CC returns to proper operating level and stabilizes. Four industry standard VTRIP thresholds are available, however, Intersil's unique circuits allow the threshold to be reprogrammed to meet custom requirements or to fine-tune the threshold for applications requiring higher precision.
