Features:

.  Dual voltage monitoring
-V  operates independent of VCC 2Mon
.  Watchdog timer with selectable timeout intervals
.  Low VCC  detection and reset assertion
-Four standard reset threshold voltages
-User programmable VTRIP  threshold
-Reset signal valid to VCC =1V
.  Low power CMOS
-20A max standby current, watchdog on
-1A standby current, watchdog OFF
.  64Kbits of EEPROM
-64 byte page size
.  Built-in inadvertent write protection
-Power-up/power-down protection circuitry
-Protect 0, 1/4, 1/2, all or 64, 128, 256 or 512
   bytes of EEPROM array with programmable (TM)
   Block Lock  protection
.  400kHz 2-wire interface
-Slave addressing supports up to 4 devices on the same bus
.  2.7V to 5.5V power supply operation
.  Available Packages
-14-lead SOIC
-14-lead TSSOP



Pinout

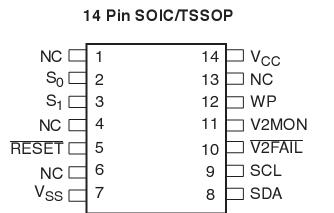

  Connection Diagram


Specifications

Temperature under bias ................... -65°C to +135°C
Storage temperature ........................ -65°C to +150°C
Voltage on any pin with respect to VSS.......-1.0V to +7V
D.C. output current (sink).......................................10mA
Lead temperature (soldering, 10 seconds)..........300°C



Description

The X40626 combines four popular functions, Power-on Reset Control, Watchdog Timer, Dual Supply Voltage Supervision, and Serial EEPROM Memory in one pack- age. This combination lowers system cost, reduces board space requirements, and increases reliability.

Applying power to the device activates the power on reset circuit which holds RESET active for a period of time. This allows the power supply and oscillator to stabi- lize before the processor can execute code.

The Watchdog Timer provides an independent protection mechanism for microcontrollers. When the microcontrol- ler fails to restart a timer within a selectable time-out interval, the device activates the RESET signal. The user selects the interval from three preset values. Once selected, the interval does not change, even after cycling the power.

The X40626's low VCC detection circuitry protects the user's system from low voltage conditions, resetting the system when VCC falls below the set minimum VCC trip point. RESET is asserted until VCC returns to properoperating level and stabilizes. Four industry standard Vtrip hresholds are available. However, Xicor's unique circuits allow the threshold to be reprogrammed to meet custom requirements or to fine-tune the threshold for applications requiring higher precision.

The memory portion of the device is a CMOS Serial(TM) EEPROM array with Xicor's Block Lock  Protection. The array is internally organized as 64 bytes per page. The device features an 2-wire interface and software protocol2 allowing operation on an I C bus.


The X40626 utilizes Xicor's proprietary Direct Write  cell, providing a minimum endurance of 100,000 page write(TM) cycles and a minimum data retention of 100 years.
