Product Details

Description



Features:

• Low VCC Operation: VCC = 3.3V ±10%
• Access Time: 150ns
• Simple Byte and Page Write
-Self-Timed
-No Erase Before Write
-No Complex Programming Algorithms
-No Overerase Problem
• Low Power CMOS:
-Active: 25mA
-Standby: 150mA
• Software Data Protection
-Protects Data Against System Level Inadvertant Writes
• High Speed Page Write Capability
• Highly Reliable Direct Write™ Cell
-Endurance: 10,000 Write Cycles
-Data Retention: 100 Years
• Early End of Write Detection
-DATA Polling
-Toggle Bit Polling
• Two PLCC and LCC Pinouts
-X28LC512
-X28LC010 E2PROM Pin Compatible
-X28LC513
-Compatible with Lower Density E2PROMs

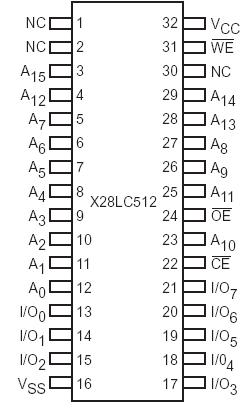

Pinout

Connection Diagram


Specifications

Temperature under Bias
X28LC512/513 .............................10°C to +85°C
X28LC512I/X28LC513I ............. 65°C to +135°C
Storage Temperature ............... 65°C to +150°C
Voltage on any Pin with
Respect to VSS ..................................... 1V to +7V
D.C. Output Current ..........................................5mA
Lead Temperature
(Soldering, 10 seconds) .............................. 300°C


Description

The X28LC512/513 is a low-power 64K x 8 E2PROM, fabricated with Xicor's proprietary, high performance, floating gate CMOS technology. The X28LC512/513 features the JEDEC approved pinout for bytewide memories, compatible with industry standard EPROMS.

The X28LC512/513 supports a 128-byte page write operation, effectively providing a 39ms/byte write cycle and enabling the entire memory to be written in less than 2.5 seconds. The X28LC512/513 also features DATA Polling and Toggle Bit Polling, system software support schemes used to indicate the early completion of a write cycle. In addition, the X28LC512/513 supports the Software Data Protection option.
