X1286

Features: • Real Time Clock/Calendar -Tracks time in Hours, Minutes, Seconds and Hundredths of a Second -Day of the Week, Day, Month, and Year• 2 Polled Alarms (Non-volatile) -Settable on the Second, Minute, Hour, Day of the Week, Day, or Month -Repeat Mode (periodic interrupts)•...

product image

X1286 Picture
See larger image
SeekIC No. : 004547051 Detail

X1286: Features: • Real Time Clock/Calendar -Tracks time in Hours, Minutes, Seconds and Hundredths of a Second -Day of the Week, Day, Month, and Year• 2 Polled Alarms (Non-volatile) -Settable o...

X1286 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
X1286
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Real Time Clock/Calendar
   -Tracks time in Hours, Minutes, Seconds and
      Hundredths of a Second
   -Day of the Week, Day, Month, and Year
• 2 Polled Alarms (Non-volatile)
   -Settable on the Second, Minute, Hour, Day of the
      Week, Day, or Month
   -Repeat Mode (periodic interrupts)
• Oscillator Compensation on chip
   -Internal feedback resistor and compensation
      capacitors
   -64 position Digitally Controlled Trim Capacitor
   -6 digital frequency adjustment settings to
      ±30ppm
• Battery Switch or Super Cap Input
• 32K x 8 Bits of EEPROM
   -128-Byte Page Write Mode
   -8 modes of Block Lock™ Protection
   -Single Byte Write Capability
• High Reliability
   -Data Retention: 100 years
   -Endurance: 100,000 cycles per byte
• 2-Wire™ Interface interoperable with I2C*
   -400kHz data transfer rate
• Frequency Output (SW Selectable: Off, 1Hz, 100Hz,
   or 32.768kHz)
• Low Power CMOS
   -1.25A Operating Current (Typical)
• Small Package Options
   -8-Lead EIAJ SOIC and 14-Lead TSSOP
• Repetitive Alarms
• Temperature Compensation


Application

• Utility Meters
• HVAC Equipment
• Audio / Video Components
• Set Top Box / Television
• Modems
• Network Routers, Hubs, Switches, Bridges
• Cellular Infrastructure Equipment
• Fixed Broadband Wireless Equipment
• Pagers / PDA
• POS Equipment
• Test Meters / Fixtures
• Office Automation (Copiers, Fax)
• Home Appliances
• Computer Products
• Other Industrial / Medical / Automotive

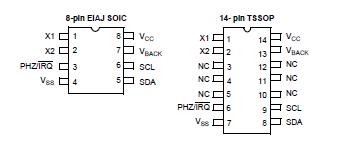

Pinout

Connection Diagram


Specifications

Temperature Under Bias .....................-65°C to +135°C
Storage Temperature .........................-65°C to +150°C
Voltage on VCC, VBACK and PHZ/IRQ
pin (respect to ground) ...............................-0.5V to 7.0V
Voltage on SCL, SDA, X1 and X2
pin (respect to ground) ...................-0.5V to 7.0V or 0.5V
above VCC or VBACK (whichever is higher)
DC Output Current ..................................................5 mA
Lead Temperature (Soldering, 10 sec)..................300°C
