Features: · Accepting two separated H&V synchronous signals with positive/ negative polarity.
· Support VESA VGA (640X480, 640X400, 640X350), VESA SVGA (800X600), European SVGA (800X600), VESA new SVGA (800X600), XGA (1024X768) and 1280x1024.
· Capable of processing horizontal frequency between 25KHZ to 80KHZ.
· Standard IBM video mode control outputs (1024X768, 640X480, 640X400, 640X350).
· Five non-standard horizontal frequency control outputs in predefined frequency range.
· Power saving mode - It can detect the conditions of monitor to decide which one will be selected as following: ON/STANDBY/SUSPEND/OFF mode.
· Fixed polarity outputs on both horizontal and vertical synchronous signals.

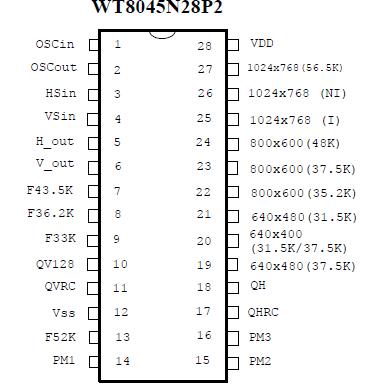

Application· Auto size control for Multi-Sync Display MonitorsPinout
Specifications
| ITEM |
SYMBOL |
VALUE |
UNIT |
| Digital Supply Voltage |
VDD |
5.5 |
V |
| Horizontal Sync. Input Voltage |
VHS |
VDD(5)+0.3 |
VPP |
| Vertical Sync. Input Voltage |
VVS |
VDD(5)+0.3 |
VPP |
| Power Dissipation |
PD |
300 |
mW |
| Operating Temperature Range |
TOPT |
0¡ ã70 |
¢ J |
| Storage Temperature Range |
TSTG |
-40¡ ã125 |
¢ J |
DescriptionThe WT8045 is a silicon monolithic circuit designed for synchronous signal processing and powersaving detection of multi-sync display monitors, which can cope with many kinds of PC's and workstations.
It can be applied to display monitors supporting standard IBM VGA, VESA super VGA and IBM 8514/A video modes. It can also be used in other high-end display monitors supporting non-standard video modes with user-defined horizontal/vertical frequency ranges.
The WT8045 incorporates many functional circuits, including horizontal/vertical frequency discrimination, display mode selection, and synchronous pulse polarity and power saving detection,into this single chip IC.
WT8045 is more convenient for you to shrink the PC board size and to reduce the material and labor cost with fewer components.
WT8045 Data Sheet
