WT7512

Features: • The Over / Under Voltage Detector (OVD / UVD) monitors 3.3V, 5V, 12V input voltage level.• Both of the power good output (PGO) and fault protection latch (FPL_N) are Open Drain Output.• 75 / 300 ms time delay for UVD.• 300 ms time delay for PGO.• 38 ms for...

product image

WT7512 Picture
See larger image
SeekIC No. : 004546892 Detail

WT7512: Features: • The Over / Under Voltage Detector (OVD / UVD) monitors 3.3V, 5V, 12V input voltage level.• Both of the power good output (PGO) and fault protection latch (FPL_N) are Open Dra...

WT7512 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
WT7512
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• The Over / Under Voltage Detector (OVD / UVD) monitors 3.3V, 5V, 12V input voltage level.
• Both of the power good output (PGO) and fault protection latch (FPL_N) are Open Drain Output.
• 75 / 300 ms time delay for UVD.
• 300 ms time delay for PGO.
• 38 ms for PDON_N input signal Debounce.
• 73 us for internal signal Deglitches.
• 2.4 ms time delay for PDON_N turn-off FPL_N.


Pinout

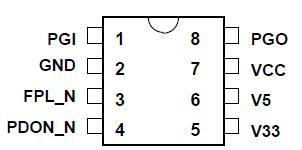

Connection Diagram


Description

The WT7512 provides protection circuits, power good output (PGO), fault protection latch (FPL_N),and a protection detector function (PDON_N) control. It can minimize external components of switching power supply systems in personal computer.

The Over / Under Voltage Detector (OVD / UVD) monitors 3.3V, 5V, 12V input voltage level. When OVD or UVD detect the fault voltage level, the FPL_N is latched HIGH and PGO go low. The latch can be reset by PDON_N goo HIGH. There is 2.4mS delay time for PDON_N turn off FPL_N.

When OVD and UVD detect the right voltage level, the power good output (PGO) will be issue.

The WT7512 is similar to WT7510. It added under voltage detector of 12V and the short poweron protection. And the delay time 1.2mS is changed to 2.4mS.
