Product Details

Description



Features:

· Low Power Replacement for Standard OP Amps
· Wide supply operating range (1.2V to 7V)
· Input common-mode voltage range includes negative rail
· Output swing to rail
· Low input bias current (typical 1pA)
· High input impedance
· Single supply operation
· Internal compensated
· Output short circuit protection


Application

· Portable Instruments
· Battery-Powered Systems
· Transducer Interfacing
· Active Filter
· High Impedance Buffer

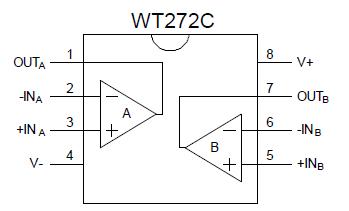

Pinout

Connection Diagram


Specifications

Parameter
Min.
Max.
Units
DC supply voltage (V+ - V- )
0
8.5
V
Input and output voltage
V- - 0.3
V+ + 0.3
V
Storage temperature
-65
150
Ambient temperature with power applied
-20
100
Duration of output short circuit
Unlimited
*Note: Stresses above those listed may cause permanent damage to the devices


Description

The WT272C/WT274C is a dual/quad low power CMOS operational amplifiers IC. It provides high performance operation at low supply voltages. The basic amplifier can operate at supply voltage as low as 1.2V with very low power consumption and makes it perfect for battery-powered application. The input common-mode voltage extends to the negative rail. The output swings to both rails with light load. The input bias current is inherently low and the input impedance is extremely high. The devices are ideal upgrades for industrial standards OP amp.
