WS57LV291C

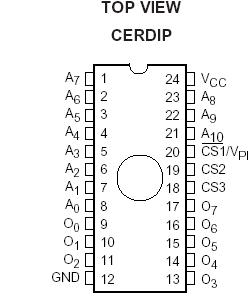

The WS57LV291C is a High Performance 2K x 8 UV Erasable Re-Programmable Read Only Memory (RPROM). This RPROM is manufactured using an advanced CMOS EPROM manufacturing process resulting in a very low power die that affords exceptional speed capabilities with a 3.3 volt VCC supply. The WS57LV291C is configured in the standard Bipolar PROM pinouts, the preferred and most common pinout for high speed PROMs of 16K density.

Operating at 3.3 volts, the WS57LV291C dissipates a maximum of 25 mA under worst case conditions at maximum speed (70 ns T_AA). Typical I_CC at 25 is less than 20 milliamps.

The WS57LV291C is packaged in a space saving 300 mil windowed, hermetic DIP package.
