WS512K32V-XG2UX

Features: ·Access Times of 15, 17, 20ns·Low Voltage Operation·Packaging • 66-pin, PGA Type, 1.075 inch square, Hermetic Ceramic HIP (Package 400) • 68 lead, 22.4mm (0.880 inch) CQFP, (G2U), 3.56mm (0.140 ), (Package 510)·Organized as 512Kx32; User Confi gurable as 2x512Kx16 or 4x512Kx...

product image

WS512K32V-XG2UX Picture
See larger image
SeekIC No. : 004546695 Detail

WS512K32V-XG2UX: Features: ·Access Times of 15, 17, 20ns·Low Voltage Operation·Packaging • 66-pin, PGA Type, 1.075 inch square, Hermetic Ceramic HIP (Package 400) • 68 lead, 22.4mm (0.880 inch) CQFP, (G...

WS512K32V-XG2UX Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
WS512K32V-XG2UX
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Access Times of 15, 17, 20ns
·Low Voltage Operation
·Packaging
    • 66-pin, PGA Type, 1.075 inch square, Hermetic Ceramic HIP (Package 400)
    • 68 lead, 22.4mm (0.880 inch) CQFP, (G2U), 3.56mm (0.140"), (Package 510)
·Organized as 512Kx32; User Confi gurable as 2x512Kx16 or 4x512Kx8
·Commercial, Industrial and Military Temperature Ranges
·Low Voltage Operation:
    • 3.3V ± 10% Power Supply
·Low Power CMOS
·TTL Compatible Inputs and Outputs
·Fully Static Operation:
    • No clock or refresh required.
·Three State Output.
·Built-in Decoupling Caps and Multiple Ground Pins for Low Noise Operation
·Weight
    WS512K32V-XG2UX - 8 grams typical
    WS512K32NV-XH1X - 13 grams typical


Pinout

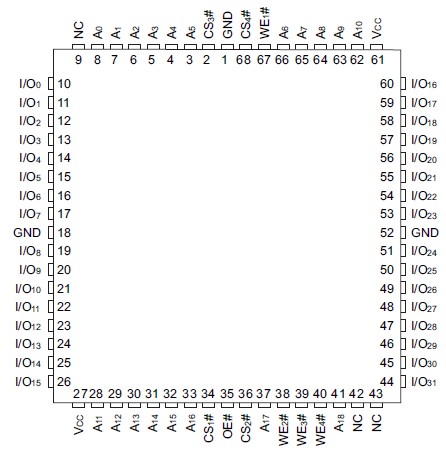

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
Operating Temperature
TA
-55
+125
°C
Storage Temperature
TSTG
-65
+150
°C
Signal Voltage Relative to GND
VG
-0.5
4.6
V
Junction Temperature
TJ
150
°C
Supply Voltage
VCC
-0.5
4.6
V
