Product Details

Description



Features:

• 4 DAC channels, stereo ADC
• Balanced mixer architecture
• S/N ratio > 95dB
• Variable rate audio and modem support
• Analogue 3D stereo enhancement
• Line level outputs
• Master/slave ID selection
• Low power implementation
• 3.3V or 5V operation
• 48-pin TQFP package


Application

• 4-channel surround sound solution implemented with 2 additional internal DACs
• 6-channel surround sound supported via connection of a stereo DAC (WM8725) to GPIO pins
• Supports 4-channel playback of analogue sources such as CD

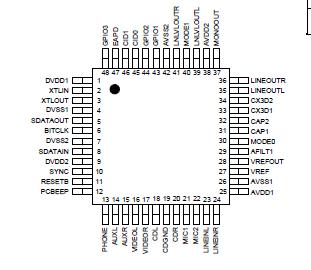

Pinout

Connection Diagram


Specifications

CONDITION MIN MAX
Digital supply voltage -0.3V +7V
Analogue supply voltage -0.3V +7V
Voltage range digital inputs DVSS -0.3V DVDD +0.3V
Voltage range analogue inputs AVDD -0.3V AVDD +0.3V
Operating temperature range, TA -25oC +85oC
Storage temperature after soldering -65oC +150oC
Package body temperature (soldering 10 seconds)   +240oC
Package body temperature (soldering 2 minutes)   +183oC



Description

WM9704Q is a high quality audio codec compliant with the AC'97 Revision 2.1 specification. It performs full duplex 18-bit codec functions from 8 to 48k samples/s and offers excellent quality with high SNR. Features include 3D sound and line-level outputs. Support is also provided for variable sample rates and master/slave mode operation. Additionally the WM9704Q provides two proprietary modes:

4-channel quad mode enables two channels of ADC and DAC plus an additional two DAC channels as rear outputs.

6-channel mode configures the device to provide external support for two additional stereo outputs via the GPIO pins.

WM9704Q is interchangeable with AC'97 Codecs from Wolfson and other suppliers in the basic Revision 2.1 mode.

WM9704Q is fully operable with 3.3V or 5.0V or mixed 3.3/5.0V supplies and is packaged in an industry standard 48-pin TQFP package.
