Features: • Audio sample rates:8, 11.025, 16, 22.05, 24, 32, 44.1, 48kHz
• DAC SNR 98dB, THD -84dB ('A'-weighted @ 8 48ks/s)
• ADC SNR 90dB, THD -80dB ('A'-weighted @ 8 48ks/s)
• On-chip Headphone/Speaker Driver with 'cap-less' connect- 40mW output power into 16 / 3.3V SPKRVDD- BTL speaker drive 0.9W into 8 / 5V SPKRVDD
• Additional MONO Line output
• Multiple analog or 'Aux' inputs, plus analog bypass path
• Mic Preamps:
• Differential or single end Microphone Interface- Programmable preamp gain- Psuedo differential inputs with common mode rejection- Programmable ALC / Noise Gate in ADC path
• Low-noise bias supplied for electret microphonesApplication• Digital Still Camera Audio Codec

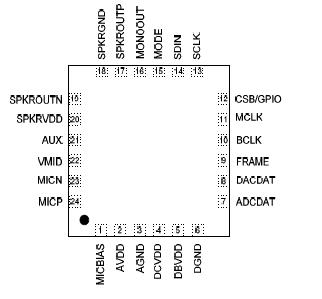

• General Purpose low power audio CODECPinout
Specifications
| CONDITION |
MIN |
MAX |
| DBVDD, DCVDD, AVDD supply voltages |
-0.3V |
+3.63V |
| SPKRVDD supply voltage |
-0.3V |
+7V |
| Voltage range digital inputs |
DGND -0.3V |
DVDD +0.3V |
| Voltage range analogue inputs |
AGND -0.3V |
AVDD +0.3V |
| Operating temperature range, TA |
-25°C |
+85°C |
| Storage temperature prior to soldering |
30°C max / 85% RH max |
| Storage temperature after soldering |
-65°C |
+150°C |
DescriptionThe WM8974 is a low power, high quality mono codec designed for portable applications such as Digital Still Camera or Digital Voice Recorder.
The WM8974 integrates support for a differential or single ended mic, and includes drivers for speakers or headphone, and mono line output. External component requirements are reduced as no separate microphone or headphone amplifiers are required.
Advanced Sigma Delta Converters of the WM8974 are used along with digital decimation and interpolation filters to give high quality audio at sample rates from 8 to 48ks/s. Additional digital filtering options are available in the ADC path, to cater for application filtering such as 'wind noise reduction', plus an advanced mixed signal ALC function with noise gate is provided.An on-chip PLL is provided to generate the required Master Clock from an external reference clock. The PLL clock can also be output if required elsewhere in the system.
The WM8974 operates at supply voltages from 2.5 to 3.6V,although the digital core can operate at voltages down to 1.62V to save power. The speaker and mono outputs use a separate supply of up to 5V which enables increased output power if required. Different sections of the chip can also be powered down under software control by way of the selectable two or three wire control interface.
WM8974 is supplied in a very small 4x4mm QFN package,offering high levels of functionality in minimum board area,with high thermal performance.
WM8974 Data Sheet
