WM8774

The WM8774 is a high performance, stereo audio codec with an 8 channel input selector. The WM8774 is ideal for surround sound processing applications for home hi-fi,automotive and other audio visual equipment.

A stereo 24-bit multi-bit sigma delta ADC is used with an eight stereo channel input selector. Each channel has analogue domain mute and programmable gain control.Digital audio output word lengths from 16-32 bits and sampling rates from 8kHz to 96kHz are supported.

A stereo 24-bit multi-bit sigma delta DAC of the WM8774 is used with oversampling digital interpolation filters. Digital audio input word lengths from 16-32 bits and sampling rates from 8kHz to 192kHz are supported. Each DAC channel has independent analogue volume and mute control, with a set of input multiplexors allowing selection of an external analogue input into these volume controls.

The audio data interface supports I²S, left justified, right justified and DSP digital audio formats.

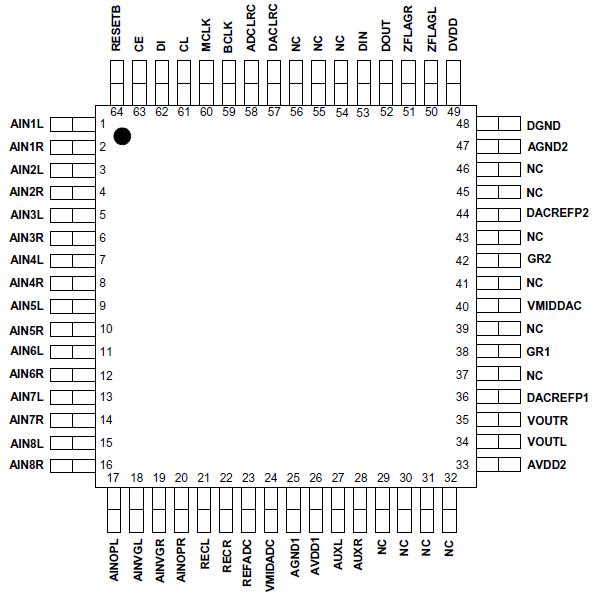

The WM8774 is controlled via a 3 wire serial interface. The interface provides access to all features including channel selection, volume controls, mutes, de-emphasis and power management facilities. The device is available in a 64-pin TQFP package.
