WM8764

Features: • 6-Channel DAC with PCM.• Audio Performance− 103dB SNR ('A' weighted @ 48kHz) DAC• DAC Sampling Frequency: 8kHz 192kHz• Hardware Control Interface• Choice of Audio Data Interface Modes− WM8763: 16-24-bit I2S− WM8764: 16-24-bit Left Justif...

product image

WM8764 Picture
See larger image
SeekIC No. : 004546199 Detail

WM8764: Features: • 6-Channel DAC with PCM.• Audio Performance− 103dB SNR ('A' weighted @ 48kHz) DAC• DAC Sampling Frequency: 8kHz 192kHz• Hardware Control Interface• Ch...

WM8764 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
WM8764
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 6-Channel DAC with PCM.
• Audio Performance
− 103dB SNR ('A' weighted @ 48kHz) DAC
• DAC Sampling Frequency: 8kHz 192kHz
• Hardware Control Interface
• Choice of Audio Data Interface Modes
− WM8763: 16-24-bit I2S
− WM8764: 16-24-bit Left Justified
− WM8765: 16-24-Bit Right Justified
• Slave Audio Data Interface
• 2.7V to 5.5V Analogue, 2.7V to 3.6V Digital supply Operation
• 20 pin SSOP Package


Application

• DVD Players
• Surround Sound AV Processors and Hi-Fi systems
• Automotive Audio


Pinout

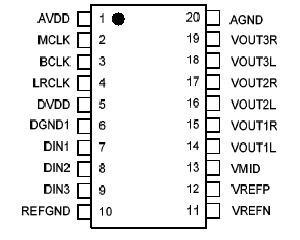

Connection Diagram


Specifications

CONDITION
MIN
MAX
Digital supply voltage
-0.3V
+5V
Analogue supply voltage
-0.3V
+7V
Voltage range digital inputs
AGND -0.3V
DVDD +0.3V
Voltage range analogue inputs
AGND -0.3V
AVDD +0.3V
Master Clock Frequency
37MHz
Operating temperature range, TA
-25°C
+85°C
Storage temperature after soldering
-65°C
+150°C
Package body temperature (soldering 10 seconds)
+240°C
Package body temperature (soldering 2 minutes)
+183°C



Description

The WM8764 are multi-channel audio DACs ideal for DVD and surround sound processing applications for home hi-fi, automotive and other audio visual equipment.

Three stereo 24-bit multi-bit sigma delta DACs of the WM8764 are used with oversampling digital interpolation filters. Digital audio input word lengths from 16-32 bits and sampling rates from 8kHz to 192kHz are supported.

The audio data interface supports either 16-24-bit I2S, 16- 24-bit left justified, or 24-bit right justified digital audio formats.

The WM8764 are controlled directly using the hardware interface. All members of the family are available in a 20-pin SSOP.
