Features: • DAC SNR 98dB ('A'weighted), THD -95B at 48kHz, 3.3V
• ADC SNR 95dB ('A'weighted), THD -90dB at 48kHz, 3.3V
• Complete Stereo / Mono Microphone Interface
- Programmable ALC / Noise Gate
• On-chip 400mW BTL Speaker Driver (mono)
• On-chip Headphone Driver
- >40mW output power on 16 / 3.3V
- THD 80dB at 20mW, SNR 90dB with 16 load
- No DC blocking capacitors required (capless mode)
• Separately mixed mono output
• Digital Graphic Equaliser
• Low Power
- 7mW stereo playback (1.8V / 1.5V supplies)
- 14mW record & playback (1.8V / 1.5V supplies)
• Low Supply Voltages
- Analogue 1.8V to 3.6V
- Digital core: 1.42V to 3.6V
- Digital I/O: 1.8V to 3.6V
• 256fs / 384fs or USB master clock rates: 12MHz, 24MHz
• Audio sample rates: 8, 11.025, 16, 22.05, 24, 32, 44.1, 48,88.2, 96kHz generated internally from master clock
• 5x5x0.9mm QFN package
Application• MP3 Player / Recorder
• AAC/WMA/Multi-Format Player / Recorder
• Minidisc Player / Recorder
• Portable Digital Music Systems

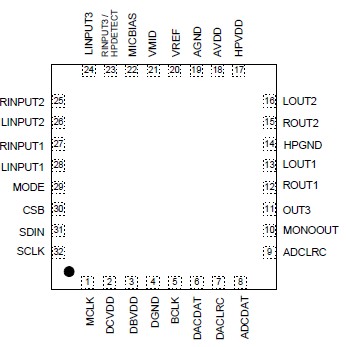

Pinout
Specifications
| CONDITION |
MIN |
MAX |
| Supply voltages |
-0.3V |
+3.63V |
| Voltage range digital inputs |
DGND -0.3V |
DBVDD +0.3V |
| Voltage range analogue inputs |
AGND -0.3V |
AVDD +0.3V |
| Operating temperature range, TA |
-25°C |
+85°C |
| Storage temperature prior to soldering |
30°C max / 85% RH max |
| Storage temperature after soldering |
-65°C |
+150°C |
| Package body temperature (soldering 10 seconds) |
|
+260°C |
| Package body temperature (soldering 2 minutes) |
|
+183°C |
DescriptionThe WM8750L is a low power, high quality stereo codec designed for portable digital audio applications.
The device integrates complete interfaces to stereo or mono microphones and a stereo headphone. External component requirements are drastically reduced as no separate microphone or headphone amplifiers are required.Advanced on-chip digital signal processing performs graphic equaliser, 3-D sound enhancement and automatic level control for the microphone or line input.
The WM8750L can operate as a master or a slave, with various master clock frequencies including 12 or 24MHz for USB devices, or standard 256fs rates like 12.288MHz and24.576MHz. Different audio sample rates such as 96kHz,48kHz, 44.1kHz are generated directly from the master clock without the need for an external PLL.
The WM8750L operates at supply voltages down to 1.8V,although the digital core can operate at voltages down to 1.42V to save power, and the maximum for all supplies is 3.6 Volts. Different sections of the chip can also be powered down under software control.
The WM8750L is supplied in a very small and thin 5x5mm QFN package, ideal for use in hand-held and portable systems.
WM8750L Data Sheet
