Product Details

Description



Features:

· Access Times of 90, 120, 150ns
· Packaging:
• 56 lead, Hermetic Ceramic, 0.520" CSOP (Package 207).
  Fits standard 56 SSOP footprint.
• 44 pin Ceramic SOJ (Package 102)**
• 44 lead Ceramic Flatpack (Package 208)**
· Sector Architecture
• 32 equal size sectors of 64KBytes each
• Any combination of sectors can be erased.
  Also supports full chip erase.
· Minimum 100,000 Write/Erase Cycles Minimum
· Organized as 2Mx16; User Confi gurable as 2 x 2Mx8
· Commercial, Industrial, and Military Temperature Ranges
· 5 Volt Read and Write. 5V ± 10% Supply.
· Low Power CMOS
· Data# Polling and Toggle Bit feature for detection of
  program or erase cycle completion.
· Supports reading or programming data to a sector
  not being erased.
· Built-in Decoupling Caps and Multiple Ground Pins
  for Low Noise Operation.
· RESET# pin resets internal state machine to the read mode.
· Ready/Busy (RY#/BY#) output for detection of
  program or erase cycle completion.
· Multiple Ground Pins for Low Noise Operati


Pinout

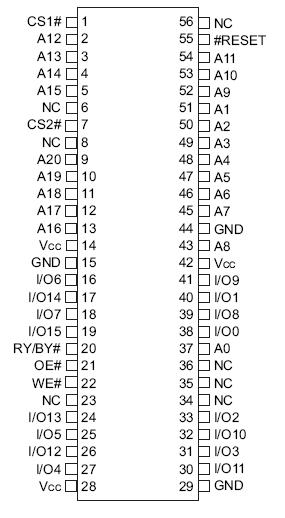

Connection Diagram


Specifications

Parameter Symbol Ratings Unit
Voltage on Any Pin Relative to VSS VT -2.0 to +7.0 V
Power Dissipation PT 8 W
Storage Temperature TSTG -65 to +12 °C
Short Circuit Output Current IOS 100 mA
Data Retention (Mil Temp)   20 years
Endurance - write/erase cycles (Mil Temp) 100,000 min cycles
