WE512K16-XG4X

Features: · Access Time of 140, 150, 200ns· Packaging: • 68 lead, 40mm Hermetic CQFP (Package 501)· Organized as 4 banks of 128Kx16· Write Endurance 10,000 Cycles· Data Retention Ten Years Minimum· Military Temperature Range· Low Power CMOS· Automatic Page Write Operation· Page Write Cycle T...

product image

WE512K16-XG4X Picture
See larger image
SeekIC No. : 004545532 Detail

WE512K16-XG4X: Features: · Access Time of 140, 150, 200ns· Packaging: • 68 lead, 40mm Hermetic CQFP (Package 501)· Organized as 4 banks of 128Kx16· Write Endurance 10,000 Cycles· Data Retention Ten Years Min...

WE512K16-XG4X Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
WE512K16-XG4X
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Access Time of 140, 150, 200ns
· Packaging:
    • 68 lead, 40mm Hermetic CQFP (Package 501)
· Organized as 4 banks of 128Kx16
· Write Endurance 10,000 Cycles
· Data Retention Ten Years Minimum
· Military Temperature Range
· Low Power CMOS
· Automatic Page Write Operation
· Page Write Cycle Time: 10ms Max
· Data Polling for End of Write Detection
· Hardware and Software Data Protection
· TTL Compatible Inputs and Outputs
· 5 Volt Power Supply
· 8 Built-in Decoupling Caps and Multiple Ground Pins for Low Noise Operation
· Weight - 20 grams typical


Pinout

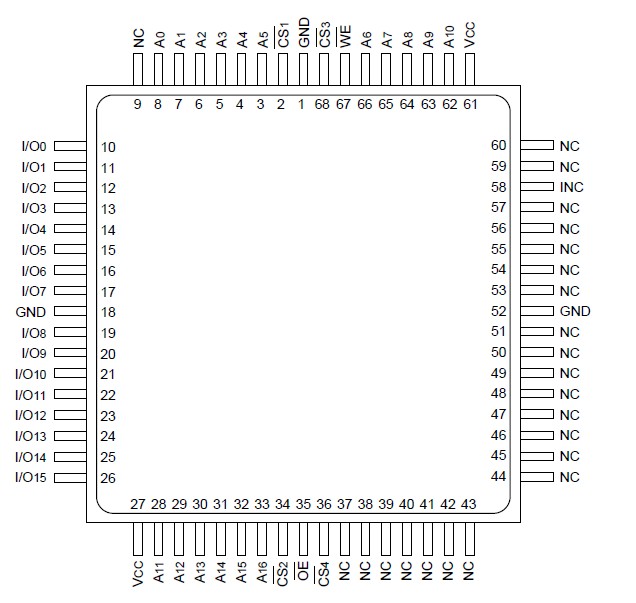

Connection Diagram


Specifications

Parameter
Symbol
Unit
Operating Temperature
TA
-55 to +125
V
Storage Temperature
TSTG
-65 to +150
V
Signal Voltage Relative to GND
VG
-0.6 to +6.25
°C
Voltage on OE and A9
-0.6 to +13.5
°C
NOTE:
Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.
