WC16P332-16GX

100% CMOS
16 MHz Operating Frequency
Single 5V Operation
System Integration Module (SIM)
• External Bus Support
• Programmable Chip-Select Outputs
• System Protection Logic
• Watchdog Timer, Clock Monitor, and Bus Monitor
• System Protection Logic
• System Clock Based on 32.768kHz Crystal for Low Power Operation
• Test/Debug Submodule for Factory/User Test and Development
Central Processing Unit (CPU)
• Upward Object Code Compatible
• New Instructions for Controller Applications
• 32-Bit Architecture
• Virtual Memory Implementation
• Loop Mode of Instruction Execution
• Table Lookup and Interpolate Instruction
• Improved Exception Handling for Controller Applications
• Trace on Change of Flow
• Hardware Breakpoint Signal, Background Mode
• Fully Static Operation
Time Processor Unit (TPU)
• Dedicated Microengine Operating Independently of CPU32
• 16 Independent, Programmable Channels and Pins
• Any Channel can Perform any Time Function
• Two Timer Count Registers with Programmable Prescalers
• Selectable Channel Priority Levels
Queued Serial Module (QSM)
• Enhanced Serial Communication Interface (SCI), Universal Asynchronous Receiver Transmitter (UART): Modulus Baud Rate, Parity
• Queued Serial Peripheral Interface (SPI): 80-Byte RAM, Up to 16 Automatic Transfers
• Dual Function I/O Ports
• Continuous Cycling, 8-16 Bits per Transfer
  Static RAM Module with TPU Emulation Capability (TPURAM)
• 2-Kbytes of Static RAM
• May be Used as Normal RAM or TPU Microcode Emulation RAM
Operating Temperature Range -55°C to 125°C

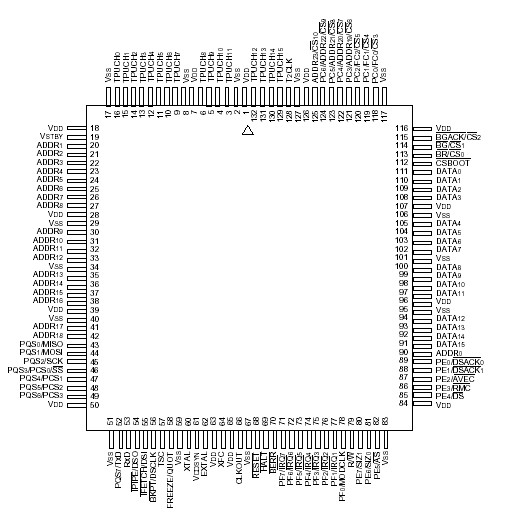

Packaging
•132 lead, 24mm (0.950") sq., Hermetic CQFP (Package 505)
(shipped with leads cut and formed).
* This data sheet describes a product under development, not fully
characterized, and is subject to change without notice.

The WC16P332-16GX is a 32-bit microcontroller that includes high performance data manipulation features and peripheral subsystems. The WC16P332-16GX is comprised of standard modules that interface through a common intermodule bus (IMB). The WC16P332-16GX accommodates expedient development of devices which are tailored for specific applications.

 The WC16P332-16GX includes a 32-bit CPU (CPU32), a system integration module (SIM), a time processor unit (TPU), a queued serial module (QSM), and a 2Kx8 SRAM module with TPU emulation capability.

The WC16P332-16GX can either synthesize an internal clock signal from an external reference or use an external clock input directly. Operation with a 32.768khz reference frequency is standard. System hardware and software allow changes in clock rate during operation. The Microcontroller module operation is fully static, therefore register and memory contents are not affected by clock rate changes.

HCMOS technology makes the WC16P332-16GX power consumption of the Microcontroller low. Power consumption can be greatly decreased by stopping the system clock. The Microcontrollerinstruction set includes a low-power stop (LPSTOP) command that easily implements this feature.
