W9966CF

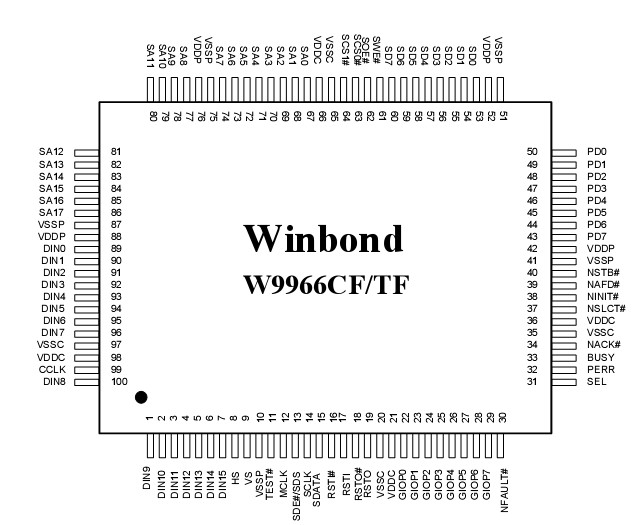

The W9966CF/TF is an  interface chip offered by Winbond to facilitate adapterless connection between video camera and personal computer ,via the industrial IEEE P1284 compatibile parallel port. W9966CF/TF along with advanced compression technlogy, provides high performance solution for video and still image capturing, video e-mail and video conferencing applications.

The W9966CF/TF eliminates the need of  traditional capture cards by using the popular SPP/EPP/ECP parallel port for video data transfer to host computers and thus reduce the cost of the video input subsystem while making it easier for users to set up. To cope with the still-limited bandwidth of the parallel port, the W9966CF/TF employs advanced programmable compression technology to reduce the amount of data transferred, and  supports a wide range of video quality as required by different application areas. A host-residing software program will decode the compressed video and present it in industrial standard formats (e.g. VFW) to the applications.

The W9966CF/TF provides wide-ranging  application-programmable video resolutions and compression ratios. For POTS-based video conferencing application, where the host processor is usually used as the H-protocols CODEC, the mode of QCIF (176x144) resolution with no compression is recommended to  save the host processor power from video recovering calculation. For high quality video capturing with high resolution and high frame rate for non-realtime applications of W9966CF/TF such as video e-mail and video editing, the mode of CIF (352x288) with high compression ratio can be used. For high quality snapshot image capturing, modes from QCIF to VGA resolution (640x480) with no compression can be used.

The W9966CF/TF adapts to a variety of CCD modules. W9966CF/TF provides a serial bus and general I/O ports as control interface for different CCD chipsets. The input format can be 16-bit YUV 4:2:2 data, or 8-bit digitized CCD raw data from the CCD sensor, which most CCD DSP modules are supporting.
