W925E240

Features: ` APPLICATION: The SMS phone with CID function and CID adjunct box.` CPU: 8-bit micro-controller is similar to the 8051 family.- Operating voltage: C: 2.2 to 5.5 volt. CID: 3.0 to 5.5 volt.` Dual-clock operation:- Main oscillator: 3.58MHz crystal for CID and DTMF function. And built-in ...

product image

W925E240 Picture
See larger image
SeekIC No. : 004545316 Detail

W925E240: Features: ` APPLICATION: The SMS phone with CID function and CID adjunct box.` CPU: 8-bit micro-controller is similar to the 8051 family.- Operating voltage: C: 2.2 to 5.5 volt. CID: 3.0 to 5.5 vol...

W925E240 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W925E240
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` APPLICATION: The SMS phone with CID function and CID adjunct box.
` CPU: 8-bit micro-controller is similar to the 8051 family.
- Operating voltage:   C: 2.2 to 5.5 volt. CID: 3.0 to 5.5 volt.
` Dual-clock operation:
- Main oscillator: 3.58MHz crystal for CID and DTMF function. And built-in RC oscillator.
- Sub oscillator: 32768Hz crystal.
- Main and sub oscillators are enable/disable by bit control individually.
` ROM: 256K bytes internal flash EEPROM/MASK ROM type.
- Up 128K bytes for program ROM.
- Total 256K bytes for look-up table ROM.
- Separate 256K into 4 pages, each page is 64K addressable.
` RAM:
- 256 bytes on chip scratch-pad RAM.
- 8K bytes on chip RAM for MOVX instruction.
` CID
- Compatible with Bellcore TR-NWT-000030 & SR-TSV-002476, British Telecom(BT) SIN227, U.K. Cable Communication Association(CCA) specification.
- FSK modulator/demodulator: for Bell 202 and ITU-T V.23 FSK with 1200 baud rate.
- CAS detector: for dual tones of Bellcore CAS and BT Idle State and Loop State Dual Tone Alert Signal (DTAS).
- DTMF generator/receiver; DTMF receiver can be programmed as a tone detector.
- Ring detector: for line reversal for BT, ring burst for CCA or ring signal for Bellcore.
- Two independent OP amps with adjustable gain for Tip/Ring and Telephone Hybrid connections.
` I/O: 40 I/O pins.
- P0: Bit and byte addressable. I/O mode can be bit controlled. Open drain type.
- P1~P3: Bit and byte addressable. Pull high and I/O mode can be bit controlled.
- P4: Byte addressable . Pull high and I/O mode can be bit controlled.
   note: "CPE*" Customer Premises Equipment
` Power mode:
- Normal mode: Normal operation.
- Dual-clock slow operation mode: System is operated by the sub-oscillator (Fosc=Fs and Fm is stopped)
- Idle mode: CPU hold. The clock to the CPU is halted, but the interrupt, timer and watchdog timer block work normally but CID function is disabled.
- Power down mode: All activity is completely stopped and power consumption is less than 1 A.
` Timer: 2 13/16-bit timers, or 8-bit auto-reload timers, that are Timer0 and Timer1.
` Watchdog timer: WDT can be programmed by the user to serve as a system monitor.
` Interrupt: 11 interrupt sources with two levels of priority.
- 4 interrupts from INT0, INT1, INT2 and INT3.
- 2 interrupts from Timer0, Timer1.
- 1 interrupt from Serial port.
- 1 interrupt from CID.
- 1 interrupt from 13/14-bit Divider.
- 1 interrupt from Comparator.
- 1 interrupt from Watch Dog Timer.
` Divider: 13/14 bit divider, clock source from sub-oscillator, therefore, DIVF set every 0.25/0.5 second.
• Comparator:
- Comparator: 1 analog inputs from VNEG pin, 2 reference input pins, one is from VPOS pin and another is from internal regulator output.
• Serial port:
- An 8-bit serial transceiver with SCLK and SDATA.
.• Package:
- 100pin QFP

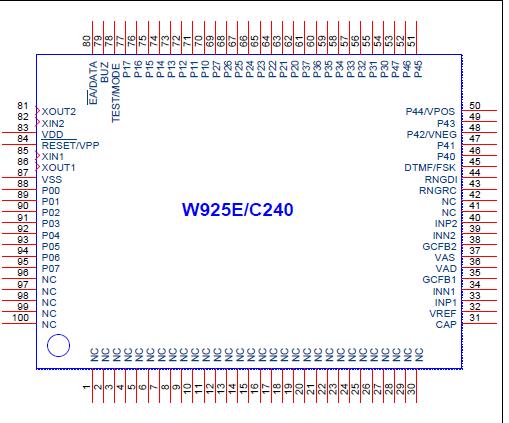

Pinout

Connection Diagram


Description

The W925E/C240 is an all-in-1 single 8-bit micro-controller with widely used Calling Identity Delivery (CID) function. The 8-bit CPU core is based on the 8051 family; therefore, all the instructions are compatible to the 8051 series. The CID part consists FSK decoder, DTMF receiver, CPE* Alert Signal (CAS) detector and Ring detector. Also built-in DTMF generator and FSK generator with baud rate 1200 bps (bits/sec). Using W925E/C240 can easily implement the CID adjunct box and the feature phone or Short Message Service (SMS) phone with CID function. The main features are listed in the next section.
