Features:

· DTMF/Pulse switchable dialer
· 32-digit redial memory
· Ten by 32 digit two-touch indirect repertory memory
· Mixed dialing, cascade dialing allowed
· Pulse-to-tone (P®T) keypad for long distance call operation
· Easy operation with redial, flash, pause and P®T keypads
· Pause, pulse-to-tone (P®T) can be stored as a digit in memory
· Tone output duration: as long as key is depressed or 90 mS minimum
· Minimum intertone pause: 90 mS
· Flash time: 100/300 mS
· Uses 4 ×5 keyboard
· On-chip power-on reset
· Uses 3.579545 MHz crystal or ceramic resonator
· Packaged in 18-pin DIP
· The different dialers in the W91630 series are shown in the following table:


Pinout

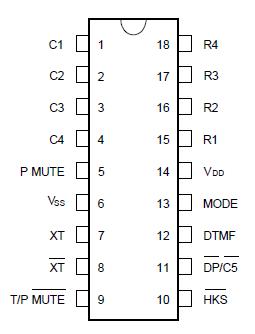

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
DC Supply Voltage
VDD-VSS
-0.3 to +7.0
V
Input/Output Voltage
VIL
VSS -0.3
V
VIH
VDD +0.3
V
VOL
VSS -0.3
V
VOH
VDD +0.3
V
Power Dissipation
PD
120
mW
Operation Temperature
TOPR
-20 to +70
°C
Storage Temperature
TSTG
-55 to +150
°C
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description

The W91630 series are Si-gate CMOS ICs that provide the signals needed for either pulse or tone dialing. It features a ten-channel, 32-digit automatic dialing memory.
