W91560N

Features: ` DTMF/pulse switchable dialer` Two by 32 digit redial and save memory` Three by 16 digit one-touch direct repertory memory` Pulse-to-tone (*/T) keypad for long distance call operation` Cascaded dialing` Uses 5* 5 keyboard` Easy operation with redial, flash, pause, and */T keypads` Pause...

product image

W91560N Picture
See larger image
SeekIC No. : 004545292 Detail

W91560N: Features: ` DTMF/pulse switchable dialer` Two by 32 digit redial and save memory` Three by 16 digit one-touch direct repertory memory` Pulse-to-tone (*/T) keypad for long distance call operation` Ca...

W91560N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W91560N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` DTMF/pulse switchable dialer
` Two by 32 digit redial and save memory
` Three by 16 digit one-touch direct repertory memory
` Pulse-to-tone (*/T) keypad for long distance call operation
` Cascaded dialing
` Uses 5* 5 keyboard
` Easy operation with redial, flash, pause, and */T keypads
` Pause, PT (pulse-to-tone) can be stored as a digit in memory
` On-hook debounce time: 150 mS (Unlock Mode), 200 mS (Lock Mode)
` 0 or 9 dialing inhibition pin for PABX system or long distance dialing lock out
` Dialing rate (10 ppS or 20 ppS) selectable by bonding option
` Minimum tone output duration: 93 mS
` Minimum intertone pause: 93 mS
` Pause time: 3.6 sec.
` 300 mS off-hook delay in lock mode (DP remains low for 300 mS while off hook)
` Flash break time (73 mS, 100 mS, 300 mS, or 600 mS) selectable by keypad; pause time is 1.0S
` Make/break ratio (40:60 or 33.3:66.7) selectable by MODE pin
` Key tone output for valid keypad entry recognition
` On-chip power-on reset
` Uses 3.579545 MHz crystal or ceramic resonator
` 18 or 20-pin dual-in-line plastic package
` The different dialers in the W91560N series are shown in the following table:


Pinout

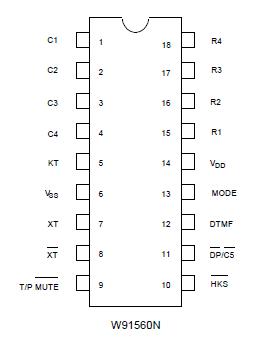

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
DC Supply Voltage
VDD-VSS
-0.3 to +7.0
V
Input/Output Voltage
VIL
VSS -0.3
V
VIH
VDD +0.3
V
VOL
VSS -0.3
V
VOH
VDD +0.3
V
Power Dissipation
PD
120
mW
Operation Temperature
TOPR
-20 to +70
°C
Storage Temperature
TSTG
-55 to +150
°C
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description

The W91560N series are tone/pulse switchable telephone dialers with three memories, keytone or lock, and handfree dialing control. These chips are fabricated using Winbond's high-performance CMOS W91560N technology and thus offer good performance in low-voltage, low-power operations.
