Product Details

Description



Features:

· One by 32 digits for redial
· Three by 32 digits for one-touch direct repertory memory
· Uses 5 × 6 keyboard
· Pause, Pulse-to-tone (*/T) can be stored as a digit in memory
· Flash can be stored as a digit in memory when in store mode
· Minimum tone output duration: 87 mS (81 mS for W91564DNF and W91565DNF)
· Minimum intertone pause: 87 mS
· Tone/Pulse mode pin selectable
· Make/Break ratio pin selectable
· Dialing rate: 10 ppS
· Pause time: 3.6 Sec. (2.0 Sec. for W91564DNF and W91565DNF)
· Flash break time (73 mS, 100 mS, 300 mS or 600 mS) selectable by keypad
· Built-in 12 or 16-digit LCD driver (1/4 duty, 1/3 bias) selectable by mask option
· Built-in calling timer from [00:00] to [59:59]
· Memory check function
· On-chip power-on reset and clear LCD
· Uses 3.579545 MHz TV quartz crystal or ceramic resonator
· Uses 32768 Hz crystal as RTC frequency base
· Switchable 24-hour clock or 12-hour clock with p.m. mode by keypad
· 0 or 9 dialing inhibition pin for PABX systems or long distance dialing lock out
· On-hook debounce: 150 mS in normal mode and 20 mS in lock mode
· Off-hook delay 300 mS in lock mode (DP will keep low for 300 mS while off hook except the first off hook after power on reset that DP will keep high for 100 mS then go low for 200 mS)
· First key-in delay: 300 mS in lock mode
· Mixed dialing allowed
· Packaged in 64-pin plastic QFP with RTC
· The functions of the different dialers in the W91560DN series are shown in following table:


Pinout

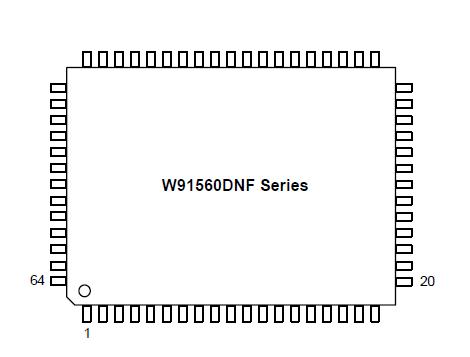

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
DC Supply Voltage
VDD-VSS
-0.3 to +7.0
V
Input/Output Voltage
VIL
VSS -0.3

VIH
VDD +0.3
V
VOL
VSS -0.3

VOH
VDD +0.3

Power Dissipation
PD
120
mW
Operation Temperature
TOPR
-20 to +70
°C
Storage Temperature
TSTG
-55 to +150
°C
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description

The W91560DN series ICs are Si-gate CMOS ICs that provide the signals needed for either pulse or tone dialing. They feature 3 number memories and a 12/16-digit LCD driver for displaying telephone numbers and calling time. A real time clock is included to display the time of day. The W91560DN series is fabricated using CMOS technology and thus provide good performance in low voltage, low power applications.
