W91330N

Features: · DTMF/pulse switchable dialer· 32-digit redial memory· Pulse-to-tone (*/T) keypad for long distance call operation· Uses 5×4 keyboard· Easy operation with redial, flash, pause, and */T keypads· Pause, pulse-to-tone (*/T) can be stored as a digit in memory· 0 or 9 dialing inhibition pin ...

product image

W91330N Picture
See larger image
SeekIC No. : 004545273 Detail

W91330N: Features: · DTMF/pulse switchable dialer· 32-digit redial memory· Pulse-to-tone (*/T) keypad for long distance call operation· Uses 5×4 keyboard· Easy operation with redial, flash, pause, and */T ke...

W91330N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W91330N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· DTMF/pulse switchable dialer
· 32-digit redial memory
· Pulse-to-tone (*/T) keypad for long distance call operation
· Uses 5×4 keyboard
· Easy operation with redial, flash, pause, and */T keypads
· Pause, pulse-to-tone (*/T) can be stored as a digit in memory
· 0 or 9 dialing inhibition pin for PABX system or long distance dialing lock out
· Off-hook delay 300 mS in lock mode (DP will keep low for 300 mS low while off hook)
· First key-in delay 300 mS output in lock mode
· Dialing rate (10, 20 ppS ) selected by bonding option
· Minimum tone output duration: 93 msec.
· Minimum intertone pause: 93 msec.
· Flash break time (73, 100, 300, 600 msec.) selectable by keypad; pause time is 1.0 sec.
· On-chip power-on reset
· Uses 3.579545 MHz crystal or ceramic resonator
· Packaged in 18 or 20-pin plastic DIP
· The different dialers in the W91330N series are shown in the following table:


Pinout

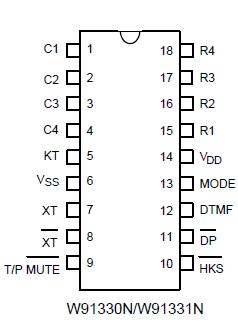

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
DC Supply Voltage
VDD-VSS
-0.3 to +7.0
V
Input/Output Voltage
VIL
VSS -0.3
V
VIH
VDD +0.3
V
VOL
VSS -0.3
V
VOH
VDD +0.3
V
Power Dissipation
PD
120
mW
Operation Temperature
TOPR
-20 to +70
°C
Storage Temperature
TSTG
-55 to +150
°C
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description

The W91330N series are Si-gate CMOS ICs that provide the necessary signals for tone or pulse dialing. They feature one-key redial, handfree dialing, key tone, redial, and lock functions.
