Product Details

Description



Features:

· PQFP 208-pin package
· High level of integration
· minimal number of inter-chip connections
· 32-bit PA-RISC core with cache memory, multiply-accumulate
  module and flexible power management unit
· DMA controller provides two external 8-bit DMA slots and four 16-bit IDE-IO slots
· memory controller supports four banks of EDO- or fast-page-mode DRAM, Flash, ROM and SRAM
· an PCI bridge supports four PCI master devices
· an IEEE-1284 compliant parallel port connecting an external printer
· two RS-232 compliant serial port connecting external MODEM controller or other serial devices
· a synchronous serial port connecting external audio or telephony codec devices
· two timer channels for general purpose usage
· High performance and low power consumption
· 0.35-micron single-poly-triple-metal CMOS process
· split rail design (3.3V/5V IO and 3.3V core)
· maximal operation frequency : 150 Mhz
· typical active current : 2.5mA/Mhz
· typical suspend current (PLL turn off) : -
· fully static design, afford dynamic turn on/off cpu clock or PLL module+
· programable standby clock to reduce standby current
· real time clock and UART baud rate base on 14.318 Mhz
· A flexible hardware serial ICE port for monitor/update cpu status at any time


Pinout

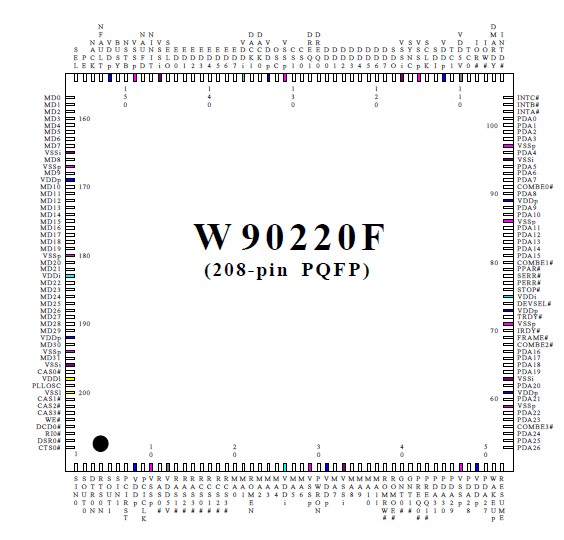

Connection Diagram


Specifications

Ambient temperature ............................................................. 0 °C ~ 70 °C
Storage temperature ......................................................... -40 °C ~ 125°C
Voltage on any pin ..................................................... Vss-0.5V ~ Vcc+0.5V
Power supply voltage ............................................................................. 7V
Injection current (latch-up testing) ................................................... 100mA
Operating power dissipation ....................................................... 30mA/Mhz
