W89C982AF

Features: · Functions conform to IEEE 802.3 section 9 specifications· Single 5V power supply· CMOS process for lower power dissipation· Twisted-Pair (TP) line media interface compatible with 10 BASE-T specifications· Differential interface compatible with AUI specifications· Port status direct rep...

product image

W89C982AF Picture
See larger image
SeekIC No. : 004545251 Detail

W89C982AF: Features: · Functions conform to IEEE 802.3 section 9 specifications· Single 5V power supply· CMOS process for lower power dissipation· Twisted-Pair (TP) line media interface compatible with 10 BASE...

W89C982AF Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W89C982AF
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/12

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Functions conform to IEEE 802.3 section 9 specifications
· Single 5V power supply
· CMOS process for lower power dissipation
· Twisted-Pair (TP) line media interface compatible with 10 BASE-T specifications
· Differential interface compatible with AUI specifications
· Port status direct report function
· Asynchronous Inter-IMPR II interface for large hub applications
· Serial management interface allows for network management and makes port status information accessible
· AUI and TP port carrier sense signals observable through a port activity monitor port
· Internal main state machine performs fragment extension, packet repetition, and collision handling functions
· Internal jabber lockup protection state machine monitors the length of each input packet to prevent transmission of excessively large packets
· Separate partition state machine for each TP port and AUI port can isolate ports when an excessive number of collisions occur and reconnect them using certain algorithms
· On-chip PLL, Manchester encoder/decoder, and FIFO


Pinout

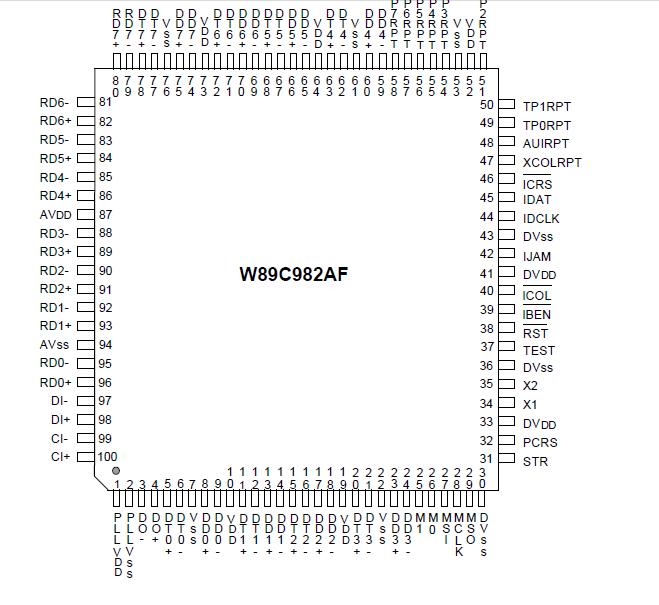

Connection Diagram


Specifications

PARAMETER
SYM.
MINIMUM
MAXIMUM
UNIT
Operating Temperature
TA
0
70
°C
Storage Temperature
TS
-55
150
°C
Supply Voltage
VDD
-0.5
7.0
V
Input Voltage
VIN
VSS -0.5
VDD +0.5
V
Output Voltage
VOUT
VSS -0.5
VDD +0.5
V
Lead Temperature (soldering 10 seconds maximum)
Tl
-55
250
°C
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description

The Integrated Multiple Port Repeater II (IMPR II) implements the repeater functions specified by section 9 of the IEEE 802.3 standard and twisted pair line transceiver functions conforming to the 10BASE-T standard. The IMPR II provides eight Twisted Pair (TP) Line Transceiver Ports and an Attachment Unit Interface (AUI) port. Each Twisted Pair (TP) Line Transceiver Port can connect to an Ethernet segment through a twisted pair line. W89C982AF AUI port can connect to a thick Ethernet segment by means of a 50-meter AUI cable. W89C982AF IMPR II provides an AUI/TP port status direct report function, which uses the ten port status pins and two select pins to indicate collisions, port link/activity, partition, polarity, and network utilization. The inter-IMPR II interface includes signals for connecting more than one IMPR II to increase the total number of hub ports. The manageable functions of the repeater and twisted pair line transceiver in the IMPR II can be accessed through a serial interface.
