W88227F

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Winbond customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Winbond for any damages resulting from such improper use or sales.

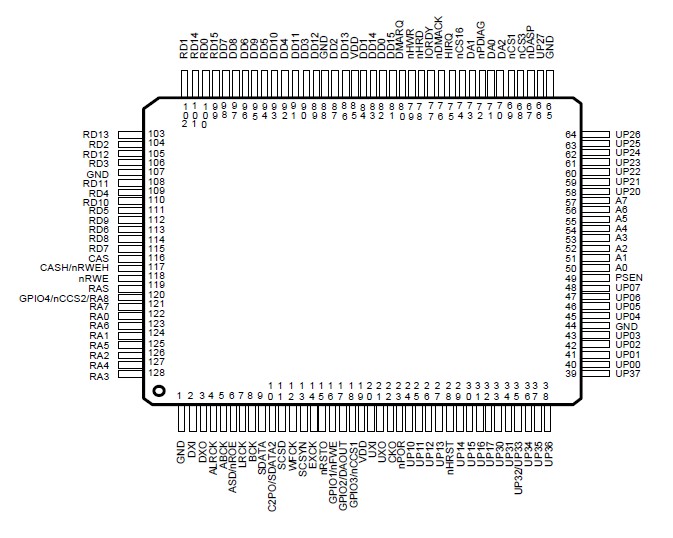

The W88227F is a CD-ROM decoder. W88227F is available in PQFP 128 package. It has some features as follows. (1) support automatic ATAPI hardware macro; (2) support automatic target header search and header comparison; (3)support automatic cache buffer management and transfer; (4)support Q-channel data extraction; (5) support high-speed CAV audio playback from DRAM buffer; (6) support left and right channels routing and muting; (7) support IEC-958 digital audio output; (8) programmable system clock for decoder operation; (9) support flash programming through IDE interface.

The following is about W88227F absolute maximum ratings. (1): power supply voltage (VDD) is from -0.3 V to 6.5 V; (2): input voltage (VIN) is from -0.3 V to VDD+0.3 V; (3): operation temperature (Top) is from 0 to 70 ; (4): storage temperature (Tst) is from -55 to 150 . Then is about its DC characteristics. (1): the minimum output high voltage (VOH) is 2.4 V at the condition of IOH is 400 A; (2): the maximum output low voltage (VOL) is 0.4 V; (3): input leakage current for ILI5 is from -10 A to 10 A; (4): input high voltage is from 0.7*VDD V to VDD+0.5 V; (5): input low voltage is from -0.5 V to 0.3*VDD V.

If you want more details about its characters,please download the datasheet at www.seekic.com.
