W83971D

Features: · 16-bit stereo full-duplex codec with fixed 48KHz sampling rate· S/N ratio: 85dB (analog to analog), 75dB(analog to digital), 85dB(digital to analog)· Four analog line-level stereo inputs for connection from LINE IN, CD, VIDEO, and AUX· Two analog line-level mono inputs for speakerphone...

product image

W83971D Picture
See larger image
SeekIC No. : 004545202 Detail

W83971D: Features: · 16-bit stereo full-duplex codec with fixed 48KHz sampling rate· S/N ratio: 85dB (analog to analog), 75dB(analog to digital), 85dB(digital to analog)· Four analog line-level stereo inputs...

W83971D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W83971D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  16-bit stereo full-duplex codec with fixed 48KHz sampling rate
·  S/N ratio: 85dB (analog to analog), 75dB(analog to digital), 85dB(digital to analog)
·  Four analog line-level stereo inputs for connection from LINE IN, CD, VIDEO, and AUX
·  Two analog line-level mono inputs for speakerphone and PC BEEP
·  Mono mic input switchable from two external sources
·  High quality pseudo-differential CD input
·  Stereo line-level output
·  Mono output for speakerphone
·  3D stereo enhancement
·  Multiple Codec Support
·  Power management support
·  Single 5V supply or analog 5V, digital 3.3V
·  Packaged in 48-pin LQFP


Pinout

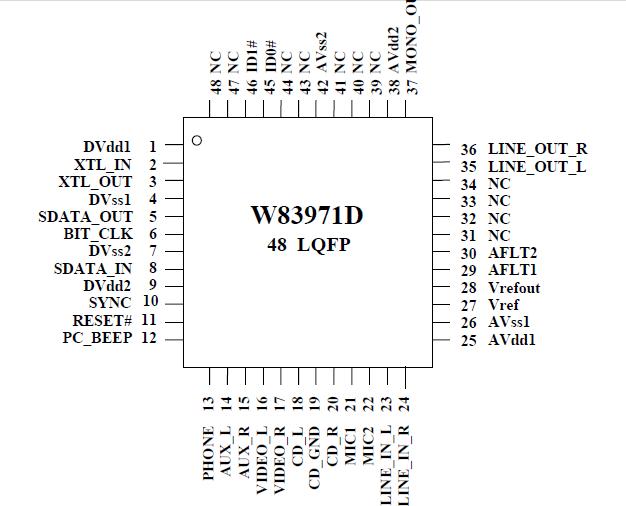

Connection Diagram


Description

The Winbond W83971D is a high performance codec compliant with Audio Codec¢97 Rev1.03 requirements, in addition to 3D stereo enhancement. The definition of AC Link serial interface allows the W83971D to be used with DC97 controller as well as various digital controller which have AC Link interface.

Packaged in a small 48-pin LQFP , the W83971D can be placed on the motherboard, daughter board, add-on cards, PCMCIA cards, or outside the main chassis such as in speakers.
