W83196R-718

Features: · One input to 24 outputs buffer· Supports up to 4 D.D.R. DIMMs or 3 SDRAM DIMMs and 2 D.D.R. DIMMs· One additional output for feedback· Low Skew outputs (< 100ps)· Support s up to 200MHz D.D.R. SDRAM· I2C 2-Wire serial interface and supports Byte or Block Date RW· Power management pi...

product image

W83196R-718 Picture
See larger image
SeekIC No. : 004545149 Detail

W83196R-718: Features: · One input to 24 outputs buffer· Supports up to 4 D.D.R. DIMMs or 3 SDRAM DIMMs and 2 D.D.R. DIMMs· One additional output for feedback· Low Skew outputs (< 100ps)· Support s up to 200M...

W83196R-718 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W83196R-718
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  One input to 24 outputs buffer
·  Supports up to 4 D.D.R. DIMMs or 3 SDRAM DIMMs and 2 D.D.R. DIMMs
·  One additional output for feedback
·  Low Skew outputs (< 100ps)
·  Support s up to 200MHz D.D.R. SDRAM
·  I2C 2-Wire serial interface and supports Byte or Block Date RW
·  Power management pin for power down control
·  48-pin SSOP package


Pinout

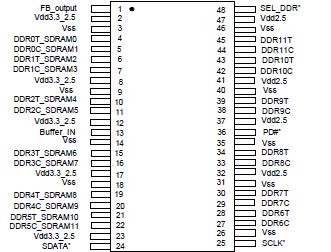

Connection Diagram


Description

The W83196R-718 is a 2.5V/3.3V Clock buffer. W83196R_718 can support 4 D.D.R. DRAM DIMMs or 3 standard SDRAM and 2 D.D.R. DRAM DIMMs.

W83196R-718 can be incorporated with W83194BR-P4X or W83194BR-325.

The W83196R_718 provides I2C serial bus interface to program the registers to enable or disable each clock outputs. The W83196R_718 accepts a reference clock as its input and runs on a 3.3V or 2.5V supply.
